63 25 000 Removing and installing/replacing auxiliary brake light

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Remove supplementary brake light cover (1) in direction of arrow from molded roofliner (2).

Fig 1: Removing Supplementary Brake Light Cover From Molded Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) and catches (2) must not be damaged.

Make sure cover is correctly seated on supplementary brake light (3).

Fig 2: Identifying Supplementary Brake Light With Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

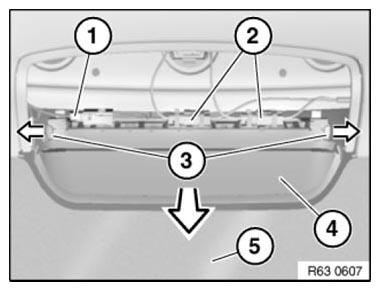

Unfasten plug connection (1) and disconnect.

If necessary, unclip plug connections (2) on supplementary brake light (4).

Unlock slide (3) on both sides and remove supplementary brake light (4) in direction of arrow from rear window (5).

Installation:

Make sure supplementary brake light (4) is correctly positioned in rear window (5).

Fig 3: Removing Supplementary Brake Light From Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.
