Removal Of Outer Wheel Arch Section

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Cut wheel arch along line (1).

REPLACE CAVITY SEALING (2).

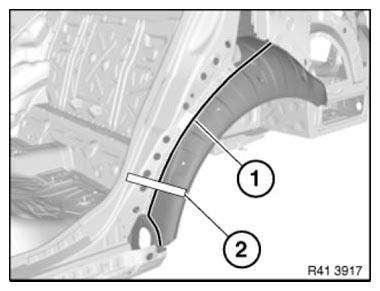

Fig 1: Identifying Cavity Sealing And Wheel Arch Along Line

Courtesy of BMW OF NORTH AMERICA, INC.

Cut wheel arch along line (1).

Remove section for outer wheel arch section.

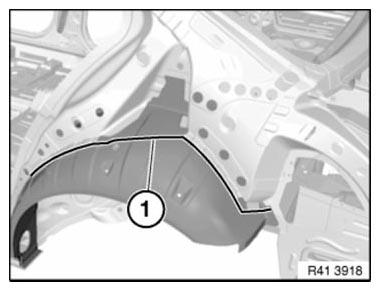

Fig 2: Identifying Wheel Arch Along Line

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Fit new part from below and weld in area (1) to overlap.

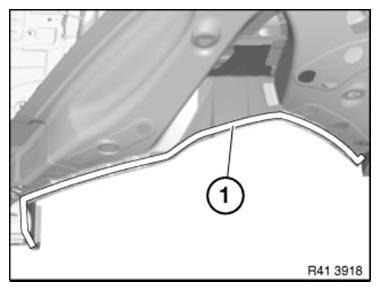

Fig 3: Identifying New Part Weld Area

Courtesy of BMW OF NORTH AMERICA, INC.
