Stamping Second Vehicle Identification Number

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Display input:

Select Layout 2 with arrow button.
Press "ENTER" button.
NOTE: With Layout 2 the already entered vehicle identification number is stamped in line 2.

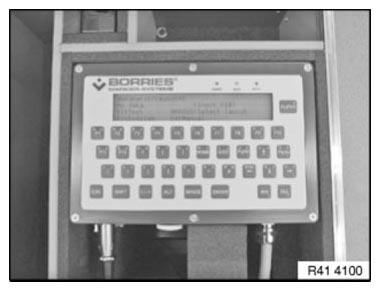

Fig 1: Identifying Display
Courtesy of BMW OF NORTH AMERICA, INC.

Start stamping operation with pushbutton (2).

After the stamping operation, if necessary adapt ENGINE COMPARTMENT LID SEAL LOCATOR of second vehicle identification number.

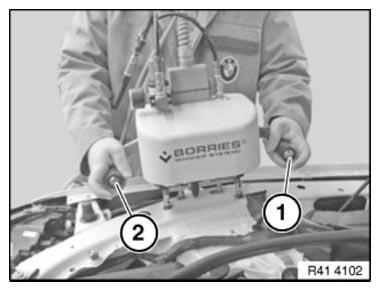

Fig 2: Stamping Vehicle Identification Number

Courtesy of BMW OF NORTH AMERICA, INC.

The following layout functions are available:

VEHICLE IDENTIFICATION NUMBER CHART

Layout selection	Vehicle identification number
Layout 1	In line 1
Layout 2	In line 2
Layout 3	Turned through 180° in line 1
Layout 4	Turned through 180° in line 2
Layout 5	Cross through in line 1
Layout 6	Cross through in line 2
