Removing Side Wall

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

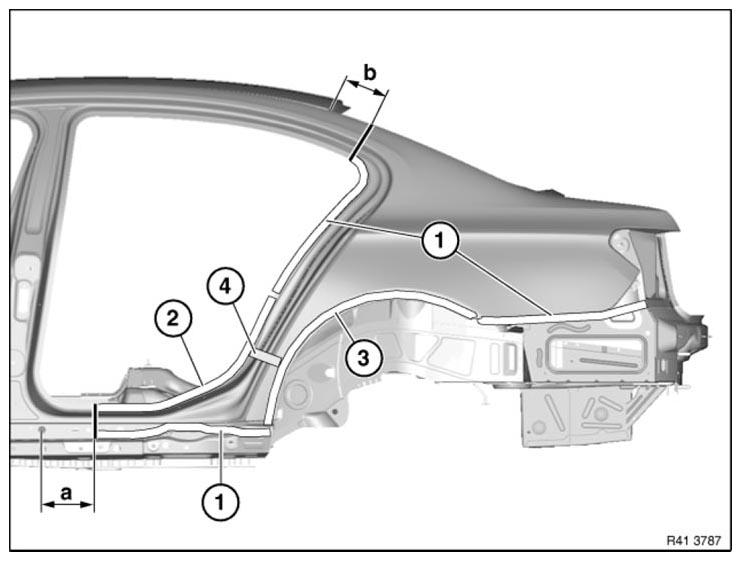

Fig 1: Identifying Cavity Sealing, Welded Connections Areas And Spot-Welded Adhesive Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only.
Compare position of severance cuts with REINFORCEMENT PLATES .
Dimension a = approx. 200 mm from center point of 25 mm dia. hole
Dimension b = approx. 115 mm from roof edge.
Open welded connections in areas (1).
Open spot-welded adhesive joints in area (2)
Open FOLDED BONDED CONNECTION in area (3).
Loosen side wall of cavity sealing (4).

NOTE: In addition to the dimensions, a TEMPLATE (1) may be used to determine the position of the separating cut.

Fig 2: Identifying Template

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1) and (2).

IMPORTANT: In areas (2), the welding spots must be released from the side wall.

Take off side wall.

Fig 3: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Release bonded joint (2).

Remove lock striker reinforcement.

Fig 4: Identifying Welded Connections Areas And Bonded Joint

Courtesy of BMW OF NORTH AMERICA, INC.
