41 34 041 Replacing Complete Tail Panel Stripping-Down Operations

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.

The following list basically represents the removal sequence.

Remove bumper trim
Remove bumper carrier
Remove center guide
Remove guide for bumper on left and right
Remove luggage compartment floor trim panel
Remove luggage compartment storage compartment
Upper tail panel trim
Remove left luggage compartment wheel arch panel
Remove right luggage compartment wheel arch panel
Remove striker for rear lid
Remove rear lights
Partially detach rear lid seal

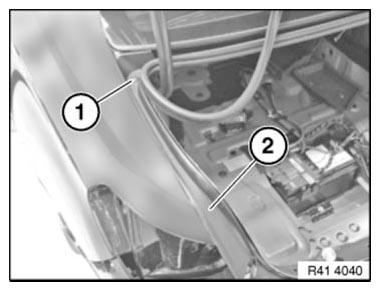

NOTE: Operation is described on the left side. Right side identical.

Lift out clip (1) and remove drip molding trim (2).

Fig 1: Identifying Clip And Drip Molding Trim

G06890625

Courtesy of BMW OF NORTH AMERICA, INC.

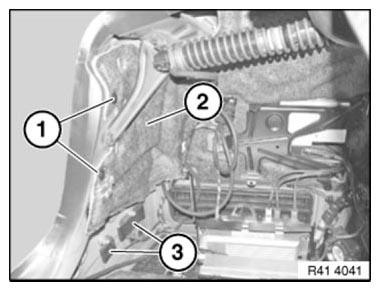

NOTE: Operation is described on the left side. Right side identical.

Lever out expander rivets (1) and fold sound insulation (2) to one side.

Release nuts and remove ground/earth points (3).

Tightening torque 41 34 2AZ .

Fig 2: Identifying Expander Rivets, Ground/Earth Points And Sound Insulation

G06890626

Courtesy of BMW OF NORTH AMERICA, INC.

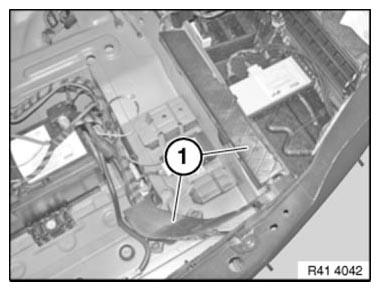

Release cable duct covers (1) and lay towards front.

Fig 3: Identifying Cable Duct Covers

G06890627

Courtesy of BMW OF NORTH AMERICA, INC.

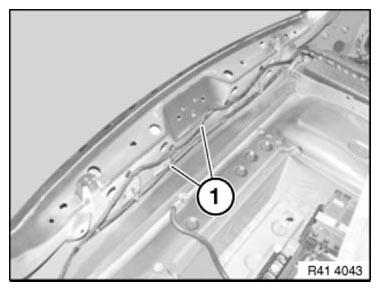

Release wiring harnesses (1) from rear trim panel and lay towards front.

Fig 4: Identifying Wiring Harnesses

G06890628

Courtesy of BMW OF NORTH AMERICA, INC.

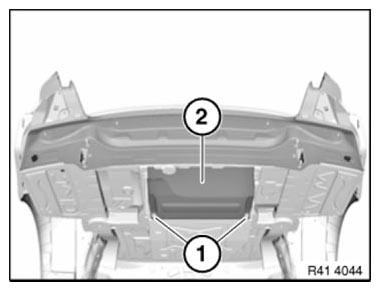

View from below.

Release nuts (1) and remove cover (1).

Fig 5: Identifying Nuts And Cover

G06890629

Courtesy of BMW OF NORTH AMERICA, INC.
