Removal Of Luggage Compartment Floor

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

For purposes of clarity, graphic shows most of the tail panel removed.

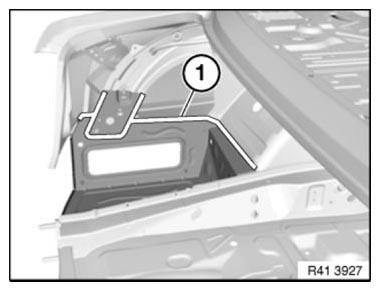

Open welded connections in area (1).

Fig 1: Identifying Welded Connections Area And Luggage Compartment Floor

Courtesy of BMW OF NORTH AMERICA, INC.

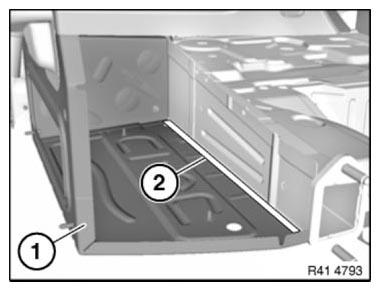

Open welded connections in area (1).

Fig 2: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

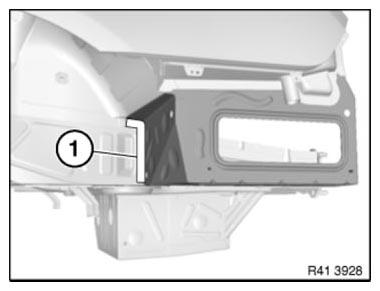

Open welded connections in area (1).

Fig 3: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

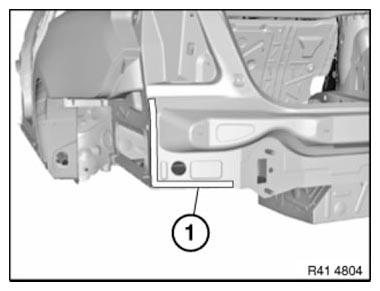

Separate welded connections in area (1) from inside.

Remove the luggage compartment floor.

Fig 4: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.
