New Part Preparation

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

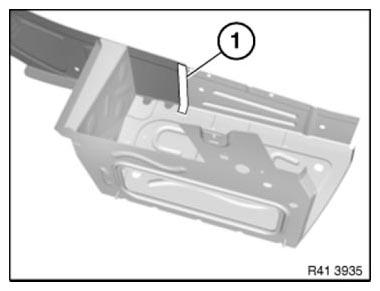

Open welded connections in area (1).

Fig 1: Identifying Welded Connections Area

G06890616

Courtesy of BMW OF NORTH AMERICA, INC.

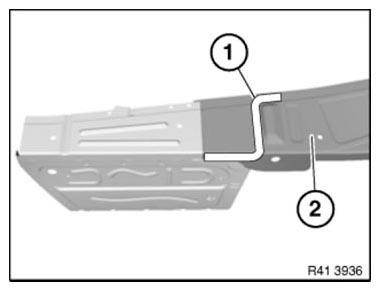

Open welded connections in area (1).

Remove metal section (2).

Fig 2: Identifying Welded Connections Area And Metal Section

G06890617

Courtesy of BMW OF NORTH AMERICA, INC.

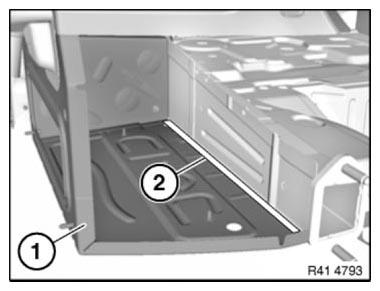

Adjust and secure the luggage compartment floor (1).

Set 5 4.2 mm dia. bore holes in area (2).

Fig 3: Identifying Luggage Compartment Floor And Bore Holes Area

G06890618

Courtesy of BMW OF NORTH AMERICA, INC.

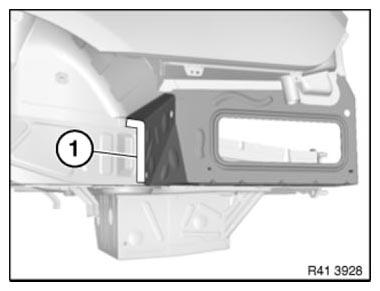

Set 3 4.2 mm dia. bore holes in area (1).

Fig 4: Identifying Bore Holes Area

G06890619

Courtesy of BMW OF NORTH AMERICA, INC.

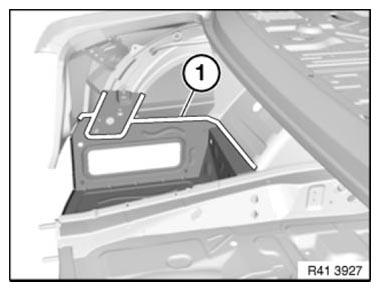

Set 11 4.2 mm dia. bore holes in area (1).

Fig 5: Identifying Bore Holes Area

G06890620

Courtesy of BMW OF NORTH AMERICA, INC.

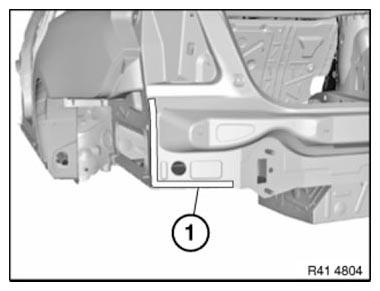

Set six 4.2 mm dia. bore holes in area (1).

Remove new parts and deburr bore holes.

Fig 6: Identifying Bore Holes Area

G06890621

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind new part and body in area of bonding surfaces.
