Removing Roof Outer Skin

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

View of passenger compartment above driver's seat.

Operation is described on the left side. Right side identical.

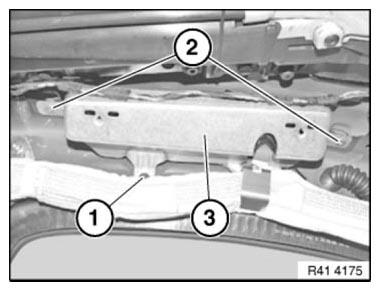

Release screw (1).

Release rivets (2) and remove holder (3).

Fig 1: Identifying Rivets, Screw And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

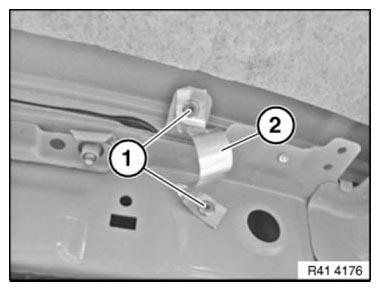

Release rivets (2) and remove earth strap (2).

NOTE: Do not damage earth strap.
Replace if necessary, part number 61 12 7 213 377
Also release earth straps on left and right above rear seat.

IMPORTANT: Only the special rivets may be used to fit the earth straps.

Fig 2: Identifying Rivets And Earth Strap

Courtesy of BMW OF NORTH AMERICA, INC.

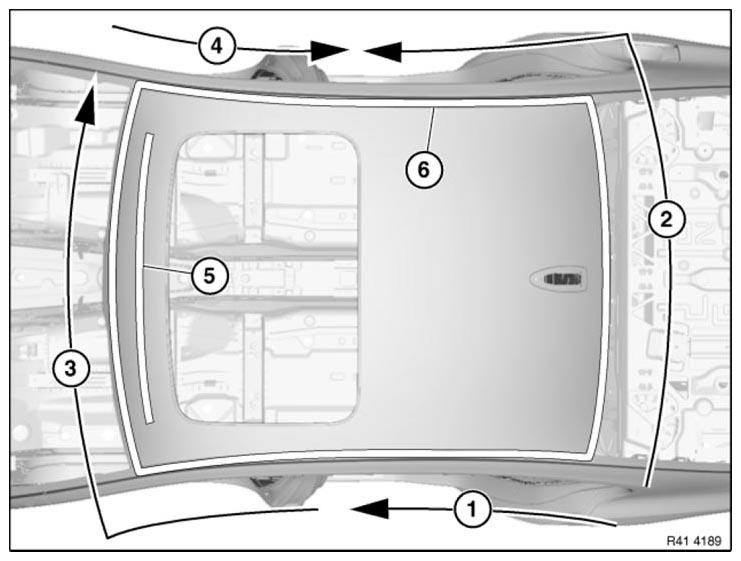

Fig 3: Identifying Bonded Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Heat bonded connection (6) with hot air blower until adhesive is loosened, then release.

In so doing, proceed in sections (1 to 4), starting at rear left.

Heat bonded connection (5) from passenger compartment and release.

IMPORTANT: Extract vapors and gases.
Primed surface must not be damaged.
Do not use any metallic tools.

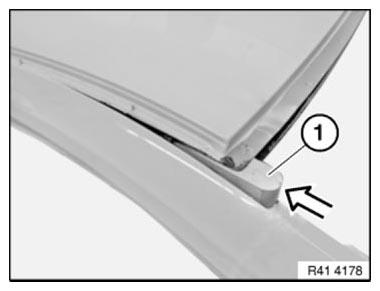

Carefully drive in plastic or wooden wedge (1) at heated section. The wedge creates tension between roof outer skin and body.

IMPORTANT: Do not exert force to drive in wedge. If the wedge cannot be driven in, continue heating roof outer skin on adhesive flange over a large area (max. 180°C).
Carry out operation with a 2nd person helping.

Heat next section until roof outer skin has detached from body. Reapply plastic wedge. Repeat procedure until roof outer skin is completely detached.

Take off roof outer skin.

Fig 4: Taking Off Roof Outer Skin

Courtesy of BMW OF NORTH AMERICA, INC.
