41 31 010 Replacing Roof Outer Skin (Version With Slide/Tilt Sunroof): Notes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
NOTE:
Observe new procedure for bonding and riveting (refer to REPAIR STAGE 2 ).
The following parts are required:

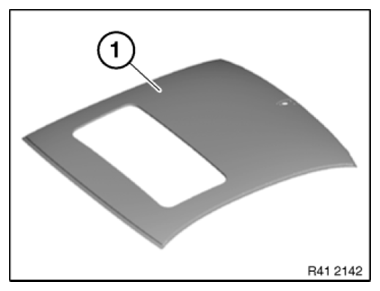

- Roof outer skin
Additional required parts (not pictured):
PART SPECIFICATION
| Description | Part number | Quantity |
|---|---|---|
| Sound insulation | 07 14 6 949 300 | 1 |
| Blind rivets for holder | 51 41 7 068 752 | 4 |
| Blind rivets for earth strap | 07 14 7 216 857 | 8 |
The following consumables are required:
MATERIAL CHART
| Material | Quantity |
|---|---|
| Adhesive K2 | 3 |
| Adhesive K5a | 1 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
Tools also required:
- Roof pliers set, order number: 81 43 2 158 707
NOTE:
Store adhesive at room temperature.
Adhere to adhesive processing temperature of 15 - 28°C without fail.
Prior to installation, store roof outer skin and vehicle for at least 12 hours at room temperature (17°C to 35°C).
Adhere to adhesive processing temperature of 15 - 28°C without fail.
Prior to installation, store roof outer skin and vehicle for at least 12 hours at room temperature (17°C to 35°C).
