2. Joining And Fixing Roof Outer Skin

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

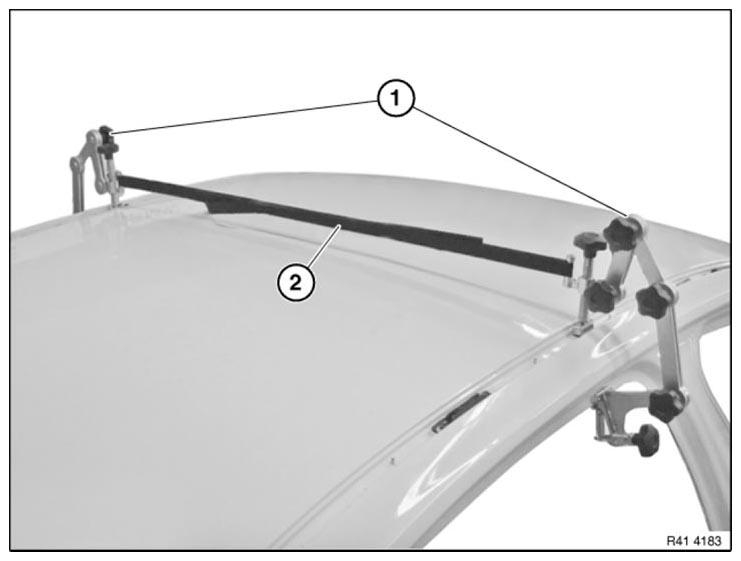

Fig 1: Securing Roof Pliers With Tensioning Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Place roof outer skin with 3 helpers evenly and centrally on vehicle.

Fit rear window and roof trim strips to check correct position of roof outer skin.

Mount roof pliers (1) and secure with tensioning strap (2).

IMPORTANT: Position clamping tools only on stiffening impressions (1) in adhesive flange area of roof outer skin.
This ensures that correct distance and thus the correct amount of adhesive between the roof outer skin and the roof frame.

Fig 2: Identifying Roof Outer Skin Adhesive Flange Area

Courtesy of BMW OF NORTH AMERICA, INC.

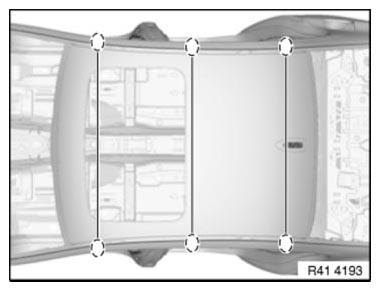

Secure roof outer skin at 3 areas with roof pliers and tensioning straps.

Fig 3: Identifying Roof Outer Skin Securing Areas

Courtesy of BMW OF NORTH AMERICA, INC.

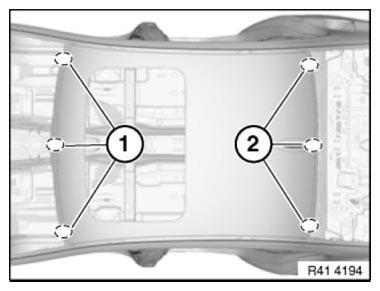

Secure roof outer skin in windscreen area 3 times with large fixing pliers (1).

In rear window area use small fixing pliers (2) 3 times.

Fig 4: Identifying Roof Outer Skin Securing Area In Windscreen

Courtesy of BMW OF NORTH AMERICA, INC.

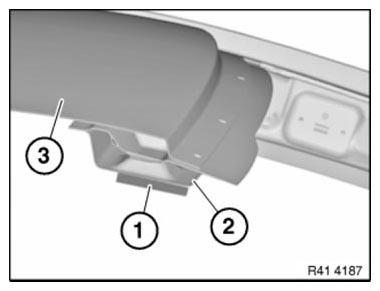

IMPORTANT: Risk of damage.
Use a suitable support (1) (approx. 50 x 50 mm) in windscreen area, as otherwise roof pillar (2) may be pressed in.
(3) Roof outer skin

Fig 5: Identifying Support, Roof Pillar And Roof Outer Skin

Courtesy of BMW OF NORTH AMERICA, INC.
