Preparation Of New Part

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rubber collar (1) from new part.

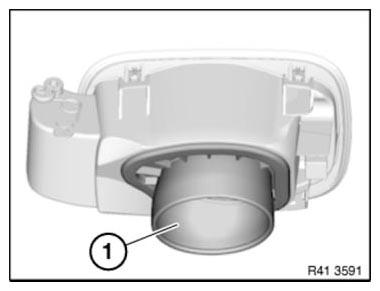

Fig 1: Identifying Rubber Collar

G06890723

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit approx. 0.5 m long cable (1) in groove on rubber collar (2).

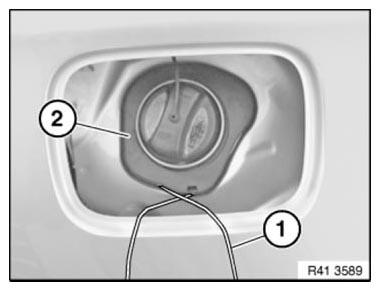

Fig 2: Identifying Cable And Rubber Collar

G06890724

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install cover bowl (1).

Thread ends of cable (2) outwards.

Align bottom rubber collar (3) with recess (see arrow).

Pull rubber collar (3) over the cover bowl by pulling the ends of cables (2).

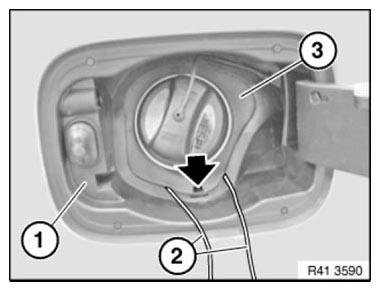

Fig 3: Aligning Bottom Rubber Collar With Recess

G06890725

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slowly pull out cable ends (2).

Press rubber collar (1) into groove with special tool 00 9 321 .

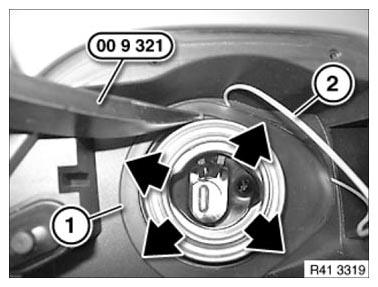

Fig 4: Pressing Rubber Collar Into Groove

G06890726

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Cover bowl (2) must snap into place 4 times.

After installing, carefully check cover bowl at clips for secure fit.

There must be no discernible gap between the sealing lip of the cover bowl and the side panel in the area.

Make sure rubber collar (1) is correctly seated (watertightness).

Fig 5: Identifying Rubber Collar And Cover Bowl

G06890727

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on ejector (2) must not be damaged.

Check protective cap (3) for correct seating.

(Watertightness.)

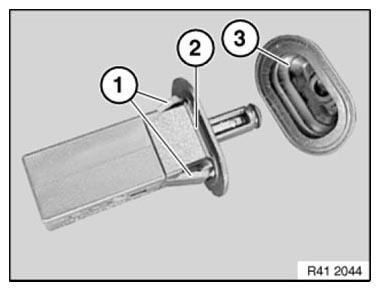

Fig 6: Identifying Protective Cap, Ejector And Catches

G06890728

Courtesy of BMW OF NORTH AMERICA, INC.
