41 12 651 Replacing Left Luggage Compartment Floor Stripping Operations (Tail Panel Or Side Panel Removed)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.

Disconnect battery negative lead
Remove rear left wheel well cover
Remove exhaust system
Remove heat shield
Remove left luggage compartment floor trim panel
Remove left luggage compartment wheel arch panel

Release holder (1) for wiring harness and lay to one side.

Release holder for control units (2).

Disconnect plug connections and remove control units (2).

Remove tank venting valve (3).

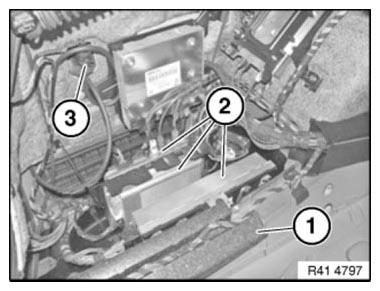

Fig 1: Identifying Holder, Control Units And Tank Venting Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Release holder for control units (1).

Disconnect plug connections and remove control units (2).

Release cable channel (2) and wiring harness (3) and place to one side.

Release latch mechanisms and remove ventilation (4).

Remove soundproofing (5).

Fig 2: Identifying Cable Channel, Wiring Harness And Control Units

Courtesy of BMW OF NORTH AMERICA, INC.
