Removing Cross Member

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Open welded connections in area (1) and remove cross member (2).

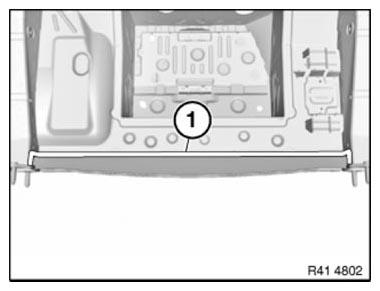

Fig 1: Identifying Welded Connections Area
G06890460Courtesy of BMW OF NORTH AMERICA, INC.
