New Part Preparation

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Adjust cross-member in combination with tail panel to fit and secure.

Drill 12 dia. 4.2 mm holes for blind rivets in area (1).

Remove new part again and deburr bore holes.

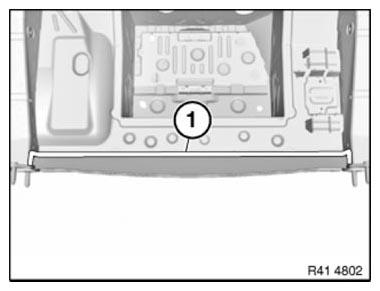

Fig 1: Identifying Blind Rivets Holes Area
G06890461Courtesy of BMW OF NORTH AMERICA, INC.
