41 12 535 Replace Luggage Compartment Floor And Both Side Members (Tail Panel Trim Removed): Notes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Place vehicle on straightening bench.
These repair instructions comprise the procedures for REPAIR STAGE 3 .

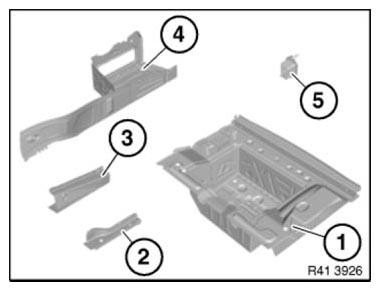

The following new body parts are required:
- (1) Luggage compartment floor, rear
- (2) Side member, left and right
- (3) Extension, side member, left and right
- (4) Luggage compartment floor, left and right
- (5) Fixture, bumper, left and right
The following consumables are required:
MATERIAL CHART
| Material | Quantity |
|---|---|
| Adhesive K5a | 2 |
| Blind rivets N3 | 87 |
| EMC screws | 4 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
