41 61 060 Removing And Installing/Replacing Left Hinge For Engine Compartment Lid (Up To 09/ 2011)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Support engine compartment lid in fully opened position with suitable apparatus. Risk of injury.

IMPORTANT: Observe separate procedure for vehicles with ACTIVE PEDESTRIAN PROTECTION .

Necessary preliminary work:

IMPORTANT: After screws have been slackened no lateral forces must be exerted on the engine compartment lid. Secure engine compartment lid with a second person.

Unscrew nuts (1).

Tightening torque 41 61 1AZ .

Remove GAS PRESSURE SPRING .

Fig 1: Identifying Engine Compartment Lid Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove hinge.

Installation note:

Tightening torque 41 61 3AZ .

ADJUST hinge together with engine compartment lid.

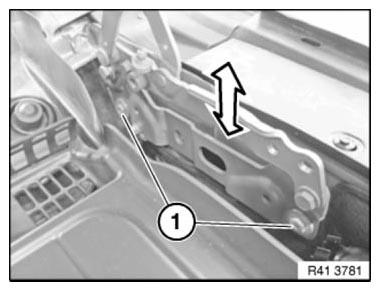

Fig 2: Adjusting Hinge

Courtesy of BMW OF NORTH AMERICA, INC.
