Protection Measures

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Wear safety goggles
Wear protective gloves

IMPORTANT: To prevent the material from tapering, do not drill out the rivet head.

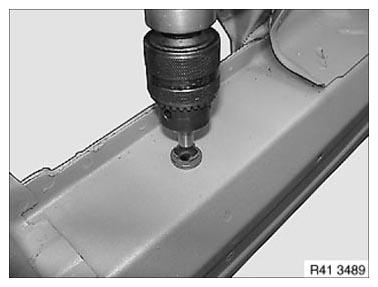

Carefully spot-drill rivet head with a larger drill bit/countersink

Fig 1: Drilling Rivet Head Using Larger Drill Bit/Countersink
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid paintwork damage

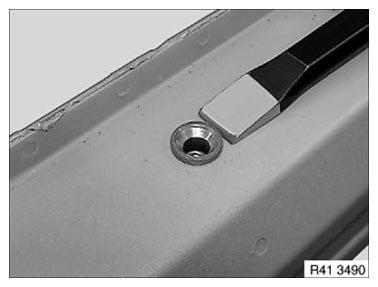

Knock rivet head away with a chisel

Fig 2: Knocking Rivet Head
Courtesy of BMW OF NORTH AMERICA, INC.

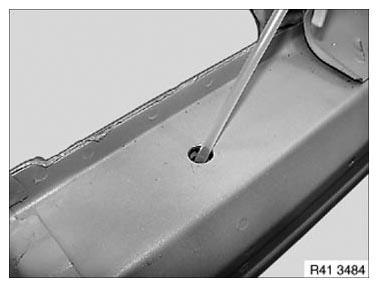

Drive through rivet shank into cavity, remove if necessary

Fig 3: Identifying Rivet Shank
Courtesy of BMW OF NORTH AMERICA, INC.

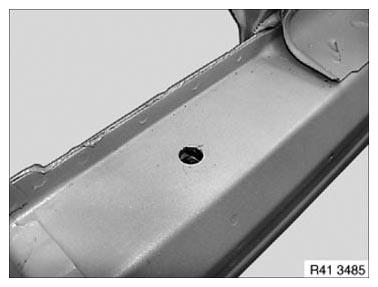

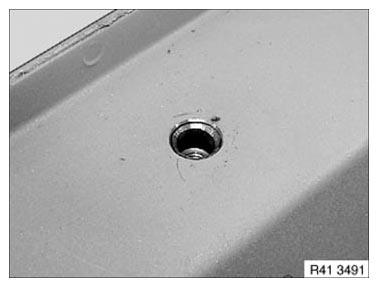

Clean component, eliminate paintwork damage if necessary

Fig 4: Identifying Component
Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank can be removed:

IMPORTANT: To avoid corrosion, stop chips/debris by means of cavity sealing.

Follow INSTRUCTIONS ON CORROSION PROTECTION .
Preserving cavity

Fig 5: Preserving Cavity
Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank cannot be removed:

WARNING: Risk of injury.
Observe NOTES ON CAVITY FOAM .

IMPORTANT: To avoid corrosion and rattling noises, stop chips/debris and rivet nut shank with cavity foam.
Remove foam remnants with isohexane (benzine).

Fig 6: Preserving Cavity

Courtesy of BMW OF NORTH AMERICA, INC.

5. Stop rivet shank by means of specific foaming
6. Set rivet nut with hand rivet gun
NOTE: Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.
