Installing Reinforcement Plate

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Clean all  bonding surfaces with cleaning agent R1.

Apply adhesive (1) to reinforcement plate bonding surface.

Carefully slide reinforcement plate half-way into body component (2).

IMPORTANT: When joining reinforcement plate, make sure there is sufficient adhesive on bonding surfaces.

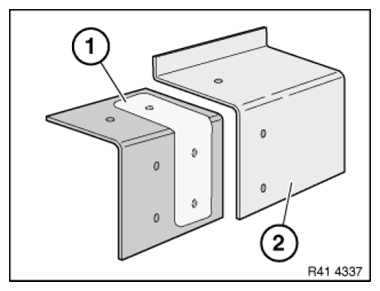

Fig 1: Identifying Adhesive On Reinforcement Plate Bonding Surface
G06890335Courtesy of BMW OF NORTH AMERICA, INC.

Rivet reinforcement plate (1) up to half-way with blind rivets N3 (2).

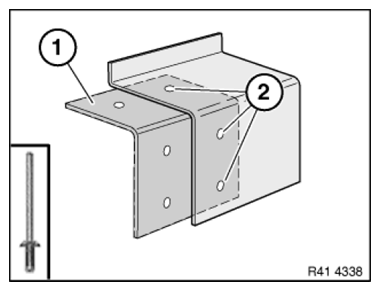

Fig 2: Riveting Reinforcement Plate Up To Half-Way With Blind Rivets N3
G06890336Courtesy of BMW OF NORTH AMERICA, INC.

Apply adhesive (1) to reinforcement plate bonding surface.

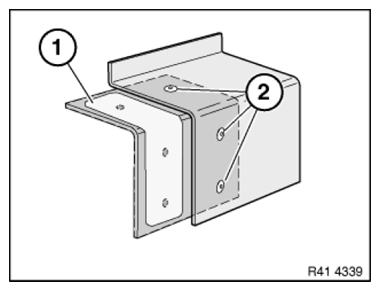

Fig 3: Identifying Adhesive On Reinforcement Plate Bonding Surface
G06890337Courtesy of BMW OF NORTH AMERICA, INC.

Install new part (1) with straightening attachment or universal mount and rivet with blind rivets N3 (2).

After adhesive has hardened, flatten adhesive area and seal blind rivets.

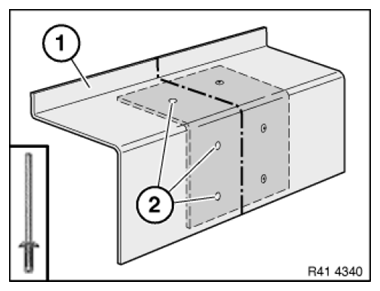

Fig 4: Installing New Part Using Blind Rivets N3
G06890338Courtesy of BMW OF NORTH AMERICA, INC.
