13 63 590 Replacing fuel pump relay

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Interrogate fault memory of DME control unit. Switch off ignition.

Remove storage compartment at rear right. Refer to 51 16 240 REMOVING AND INSTALLING REAR STORAGE COMPARTMENT .

Detach fuel pump relay (1). After removal of fuel pump relay and during engine starting sequence:

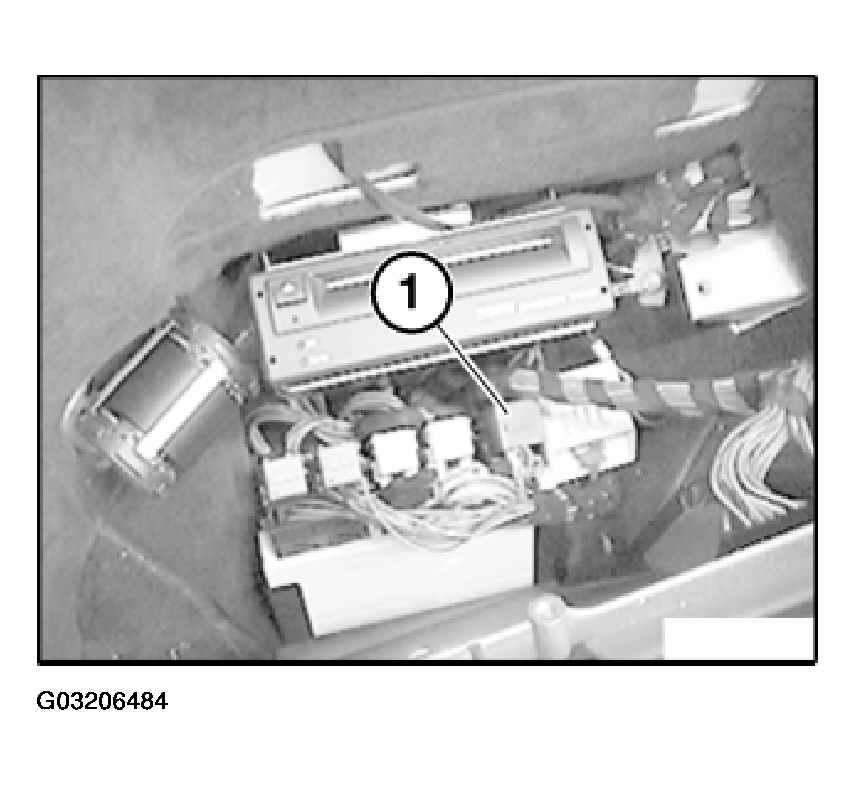

Fig 1: Locating Fuel Pump Relay

Courtesy of BMW OF NORTH AMERICA, INC.

the fuel pump no longer starts up,
the engine does not start.

NOTE: Interrogate fault memory of DME control unit.
Check stored fault messages.
Rectify faults. Then clear fault memory.
