13 54 250 Replacing intake hose (between air-mass flow sensor and manifold) (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The removal and installation of the left intake hose is described in the following text. The same procedure applies to the removal and installation of the right intake hose.

Release hose clamps (1).

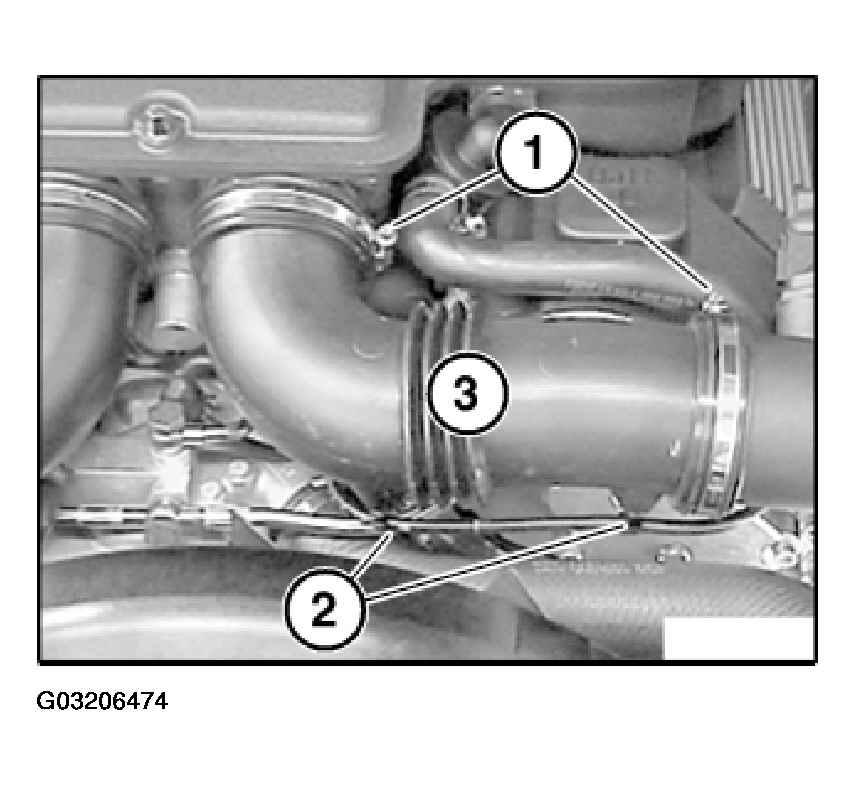

Fig 1: Releasing Hose Clamps

G03206474

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cable of air-mass flow sensor from cable holders (2).

Remove intake hose (3).

Installation:

Replace hose clips.

Check sealing ring (1) on intake air manifold for seating and damage and replace if necessary.

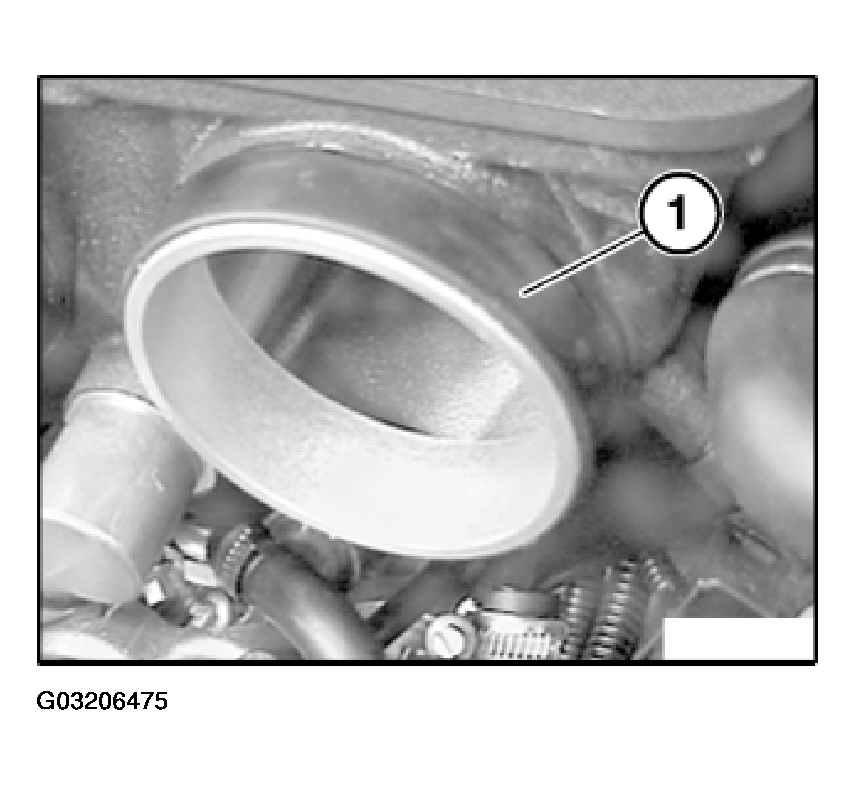

Fig 2: Checking Sealing Ring

G03206475

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To aid installation, apply a thin coat of petroleum jelly to sealing ring (1).

Check sealing ring (1) on intake hose for seating and damage and replace if necessary.

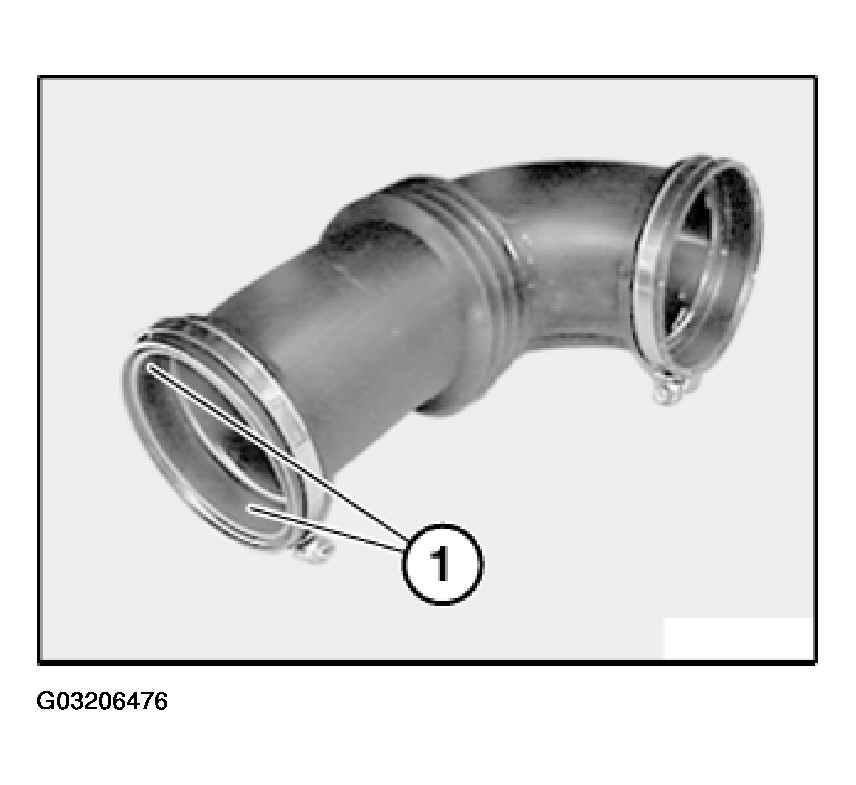

Fig 3: Checking Sealing Ring On Intake Hose

G03206476

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To aid installation, apply a thin coat of petroleum jelly to sealing ring (1).
