13 64 541 Replacing all fuel injectors (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

NOTE: Remove injection pipe.
Fuel lines remain connected.
Refer to 13 53 240 REPLACING COMPLETE INJECTION PIPE (S62) .

Unclip fasteners.

Detach all fuel injectors from injection pipes.

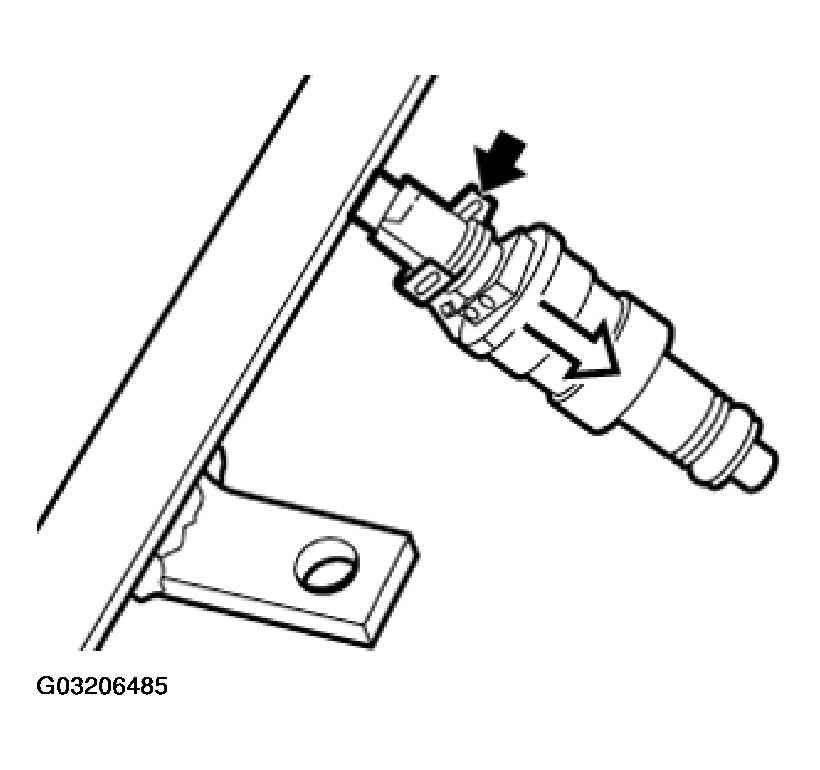

Fig 1: Detaching All Fuel Injectors From Injection Pipes

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check O-rings on fuel injectors for damage, replace if necessary.

Coat O-rings with anti-friction rubber coating (e.g. petroleum jelly).

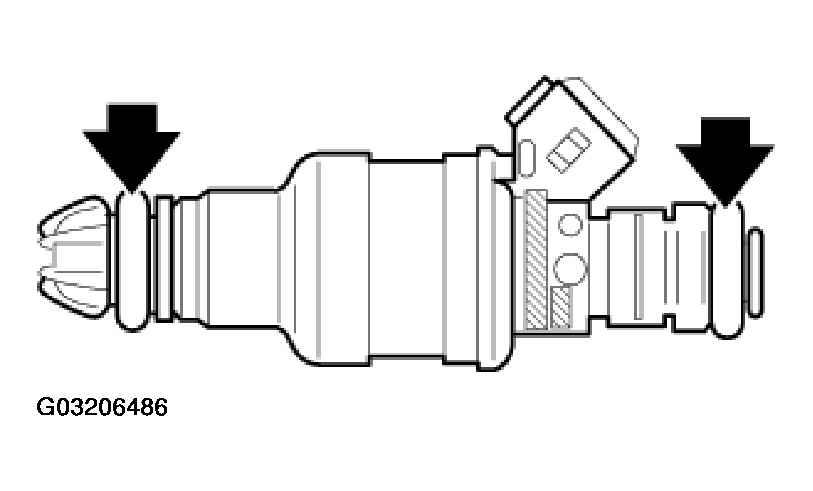

Fig 2: Locating O-Rings

Courtesy of BMW OF NORTH AMERICA, INC.
