13 41 500 Replacing idle speed control valve (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Interrogate fault memory of DME control unit. Switch off ignition.

Remove and install intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (S62) .

Disconnect plug connection (1) on idle speed control valve.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamps (1).

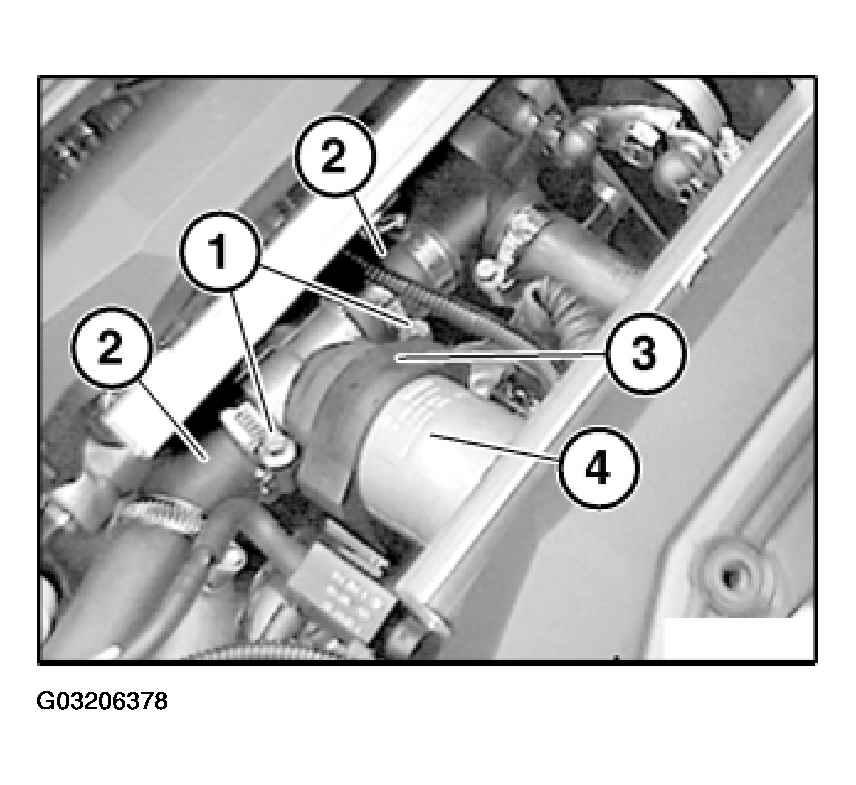

Fig 2: Removing Idle Speed Control Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Detach hose (2) from idle speed control valve (4).

Remove rubber mount (3) from retaining bracket.

Remove idle speed control valve (4).

Installation:

Lay rubber mount around idle speed control valve and attach with retaining lugs (1) to retaining bracket.

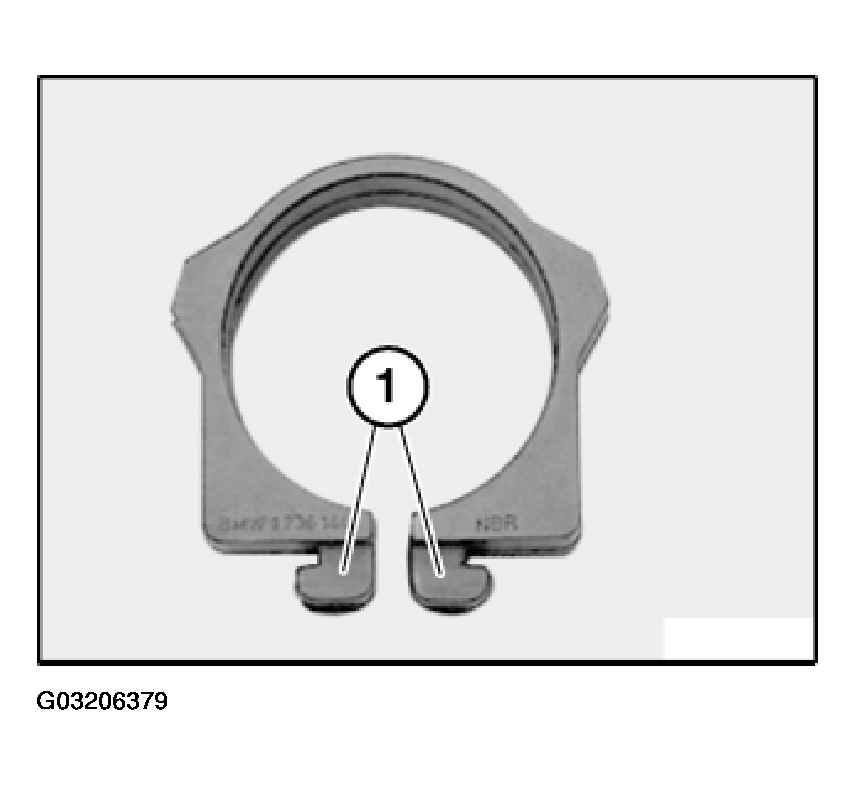

Fig 3: Laying Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Now clear the fault memory.
