13 51 630 Replacing fuel pressure regulator (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

CAUTION: The fuel in the fuel lines is under pressure (approx. 3 to 5 bar)!

Catch and dispose of escaping fuel.

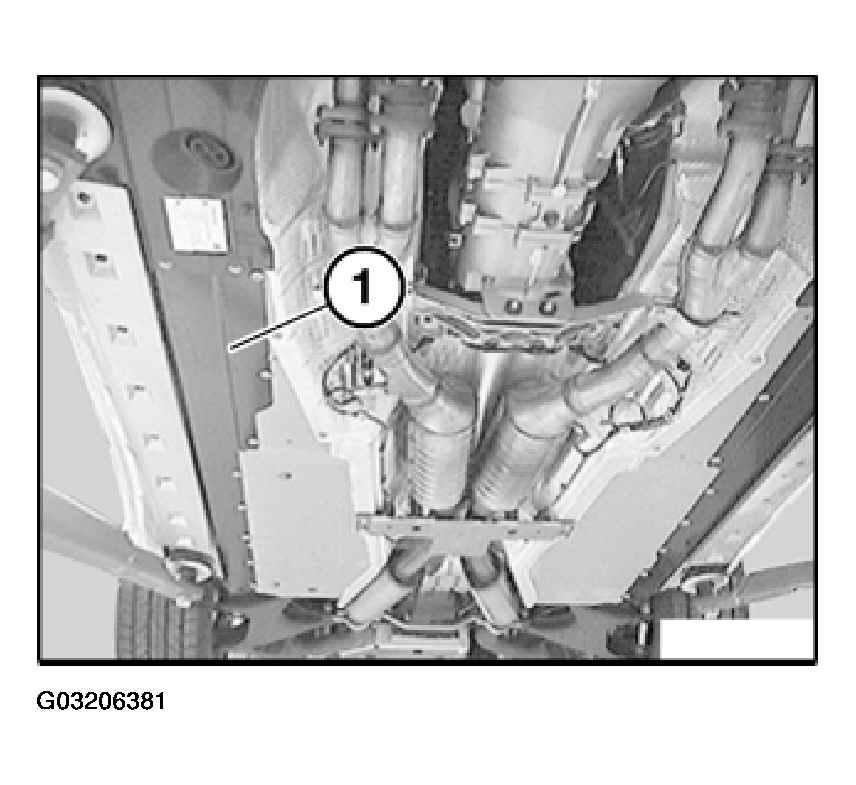

Remove cover (1).

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

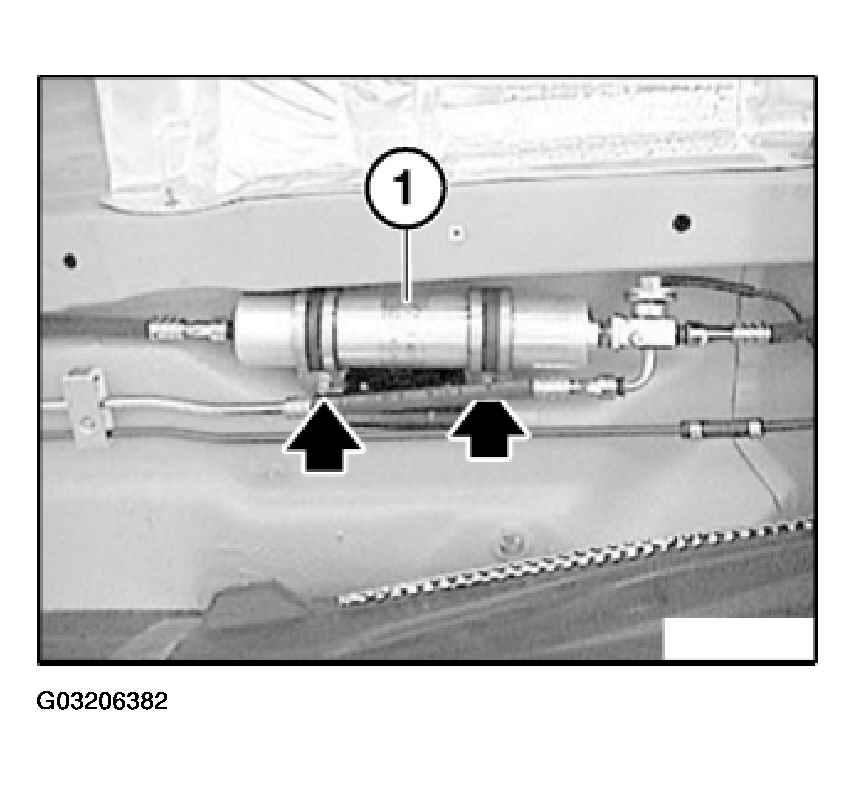

Release screws on holders of fuel filter.

This lowers the fuel filter (1), enabling access to the fuel pressure regulator.

Fig 2: Releasing Screws On Holders Of Fuel Filter

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Fuel lines remain connected.

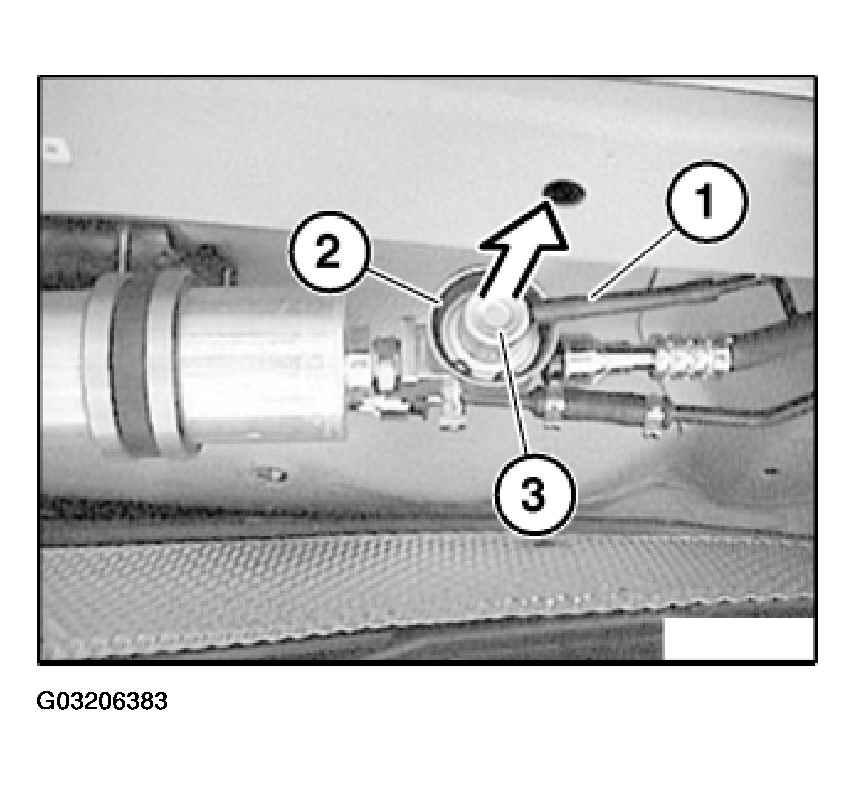

Detach vacuum hose (1).

Fig 3: Removing Fuel Pressure Regulator

Courtesy of BMW OF NORTH AMERICA, INC.

Remove snap ring (2).

Pull out fuel pressure regulator (3).

NOTE: Catch and dispose of escaping fuel. Note installation position of fuel pressure regulator.

Installation:

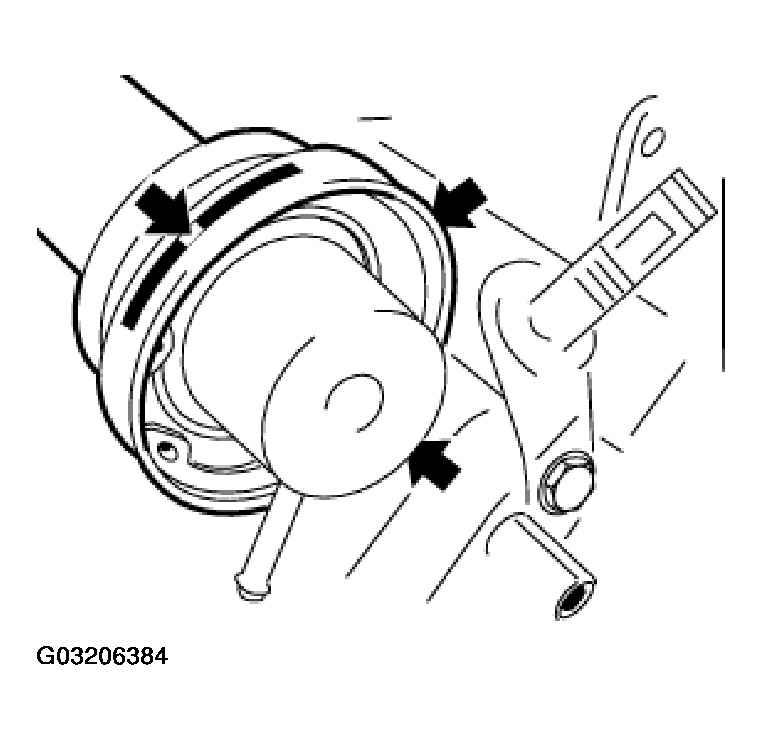

Snap lugs of snap ring into place in openings on fuel pressure regulator housing.

Fig 4: Snapping Lugs Of Snap Ring Into Place

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

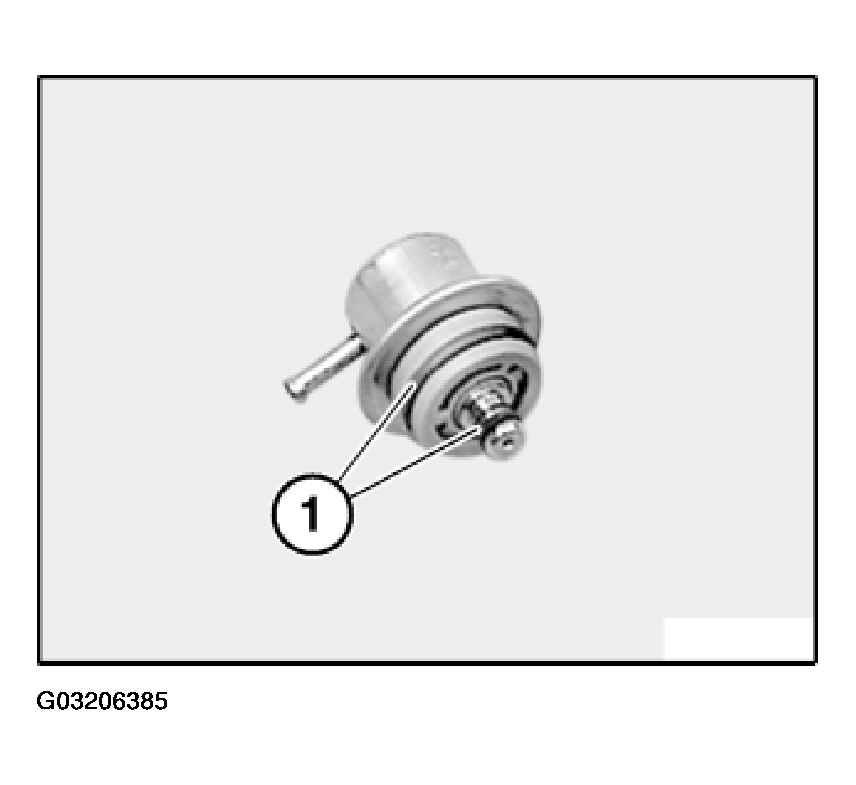

W (e.g. petroleum jelly) to O-rings of fuel pressure regulator (1).

Fig 5: Locating O-rings

Courtesy of BMW OF NORTH AMERICA, INC.
