13 53 540 Replacing, sealing fuel hoses

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The fuel in the fuel lines is under pressure (approx. 3-5 bar)!

Recycling

Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

Version with hose clamps:

Release hose clamps.

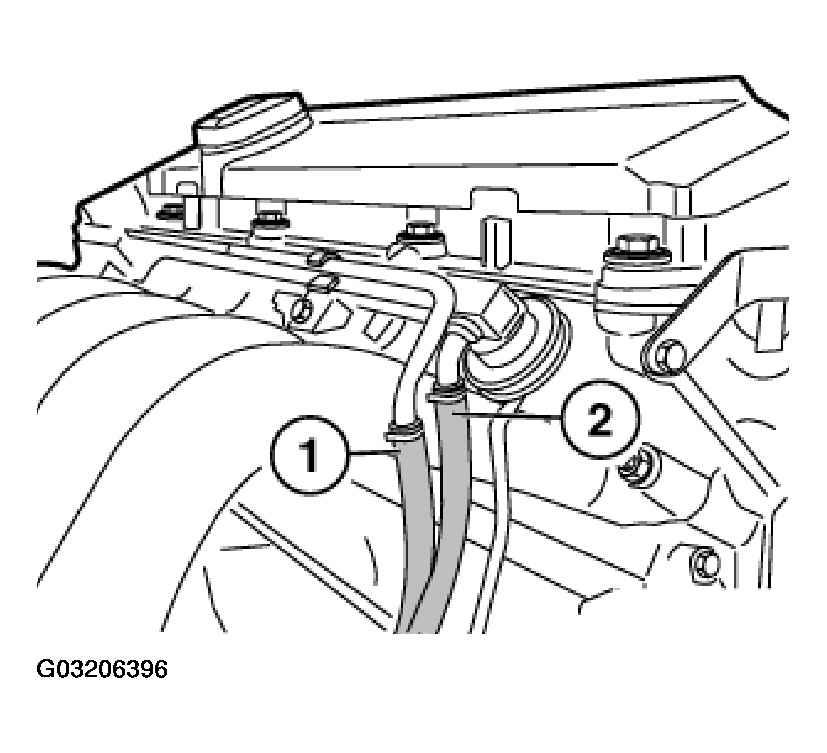

Remove hoses (1) and (2).

Fig 1: Removing Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fuel hoses and hose clamps must be replaced each time they are removed!

Version with compressed air connection:

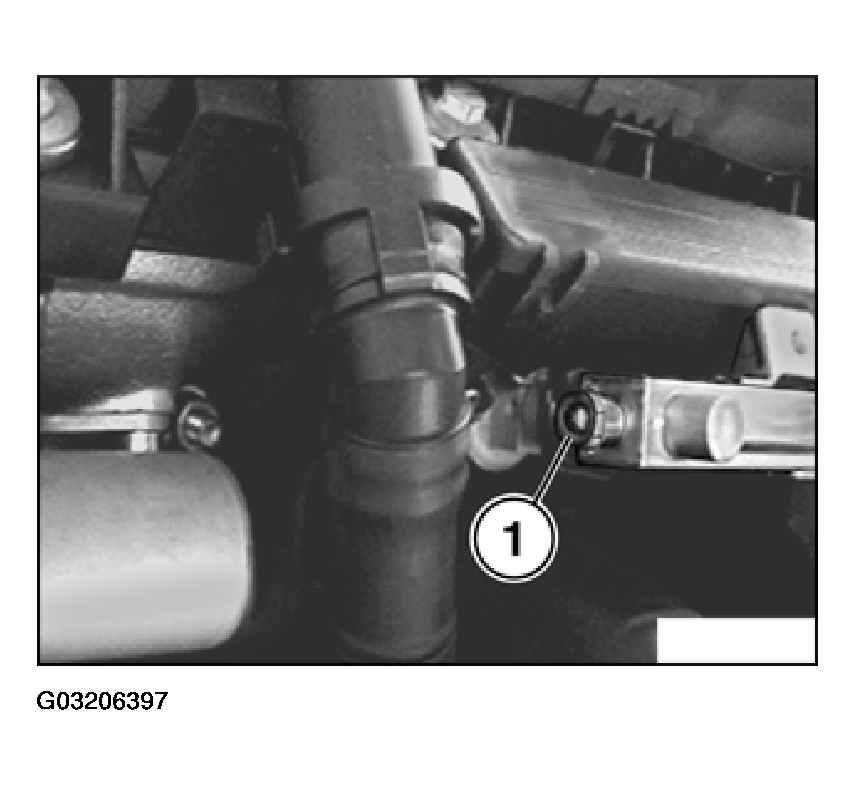

Blow fuel back into tank with a short blast of compressed air (max. 3 bar) at compressed air connection (1).

Fig 2: Locating Compressed Air Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Version, fuel hoses without integrated unlocking facility:

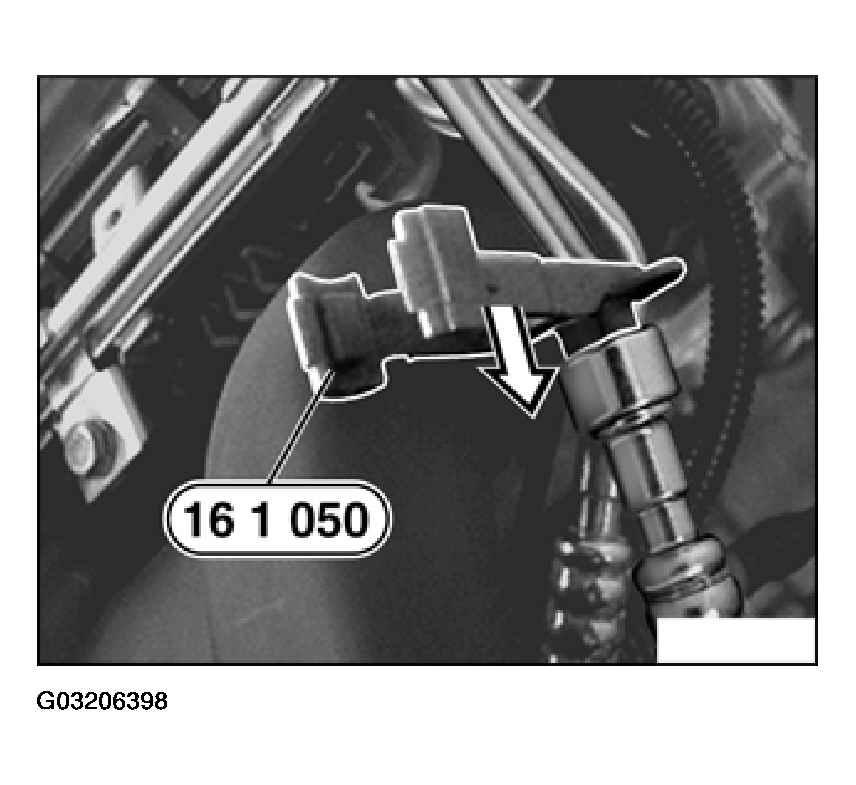

Unlock fuel hoses with special tool 16 1 050 and detach hoses.

Fig 3: Unlocking Fuel Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check O-ring in fuel hose and sealing surfaces on fuel lines for damage; replace components if necessary. Coat O-ring for assembly with anti-friction agent.

Version, fuel hoses with integrated unlocking facility:

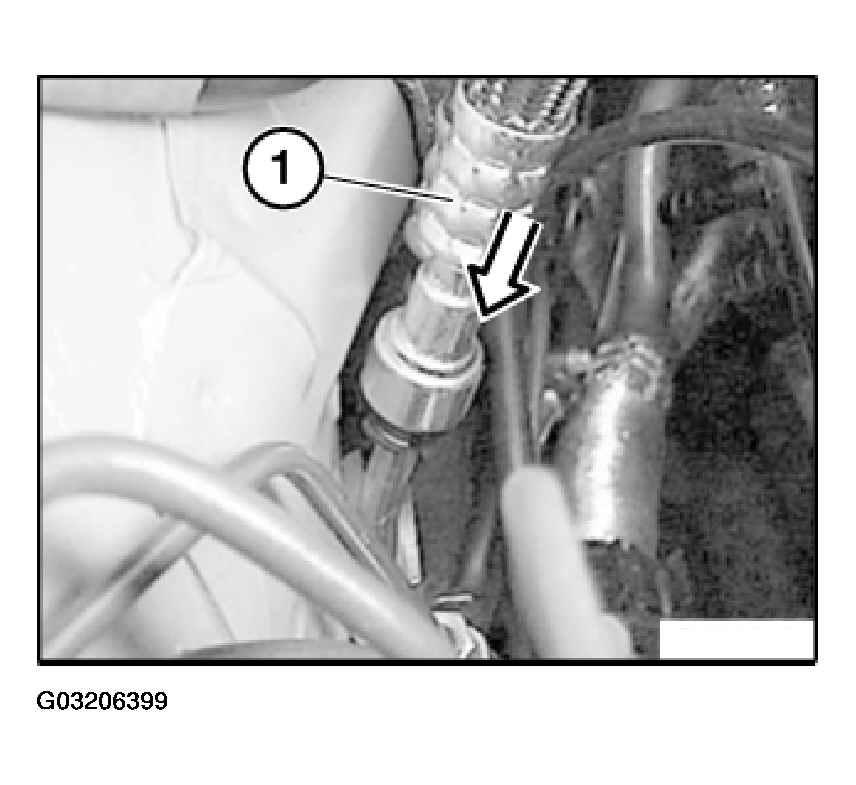

Press fuel hose (1) downwards and keep pressed.

Fig 4: Pressing Fuel Hose Down

Courtesy of BMW OF NORTH AMERICA, INC.

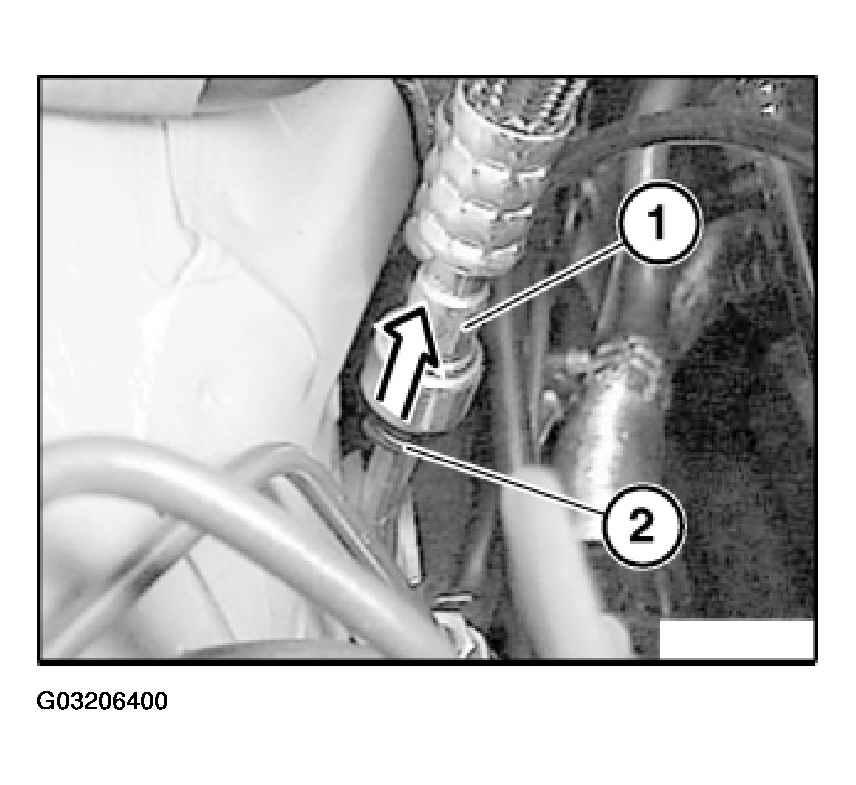

Press unlocking ring (2) upwards, keep pressed and detach fuel hose (1).

Fig 5: Detaching Fuel Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check O-ring in fuel hose and sealing surfaces on fuel lines for damage; replace components if necessary. Coat O-ring for assembly with anti-friction agent.

Seal off fuel hoses:

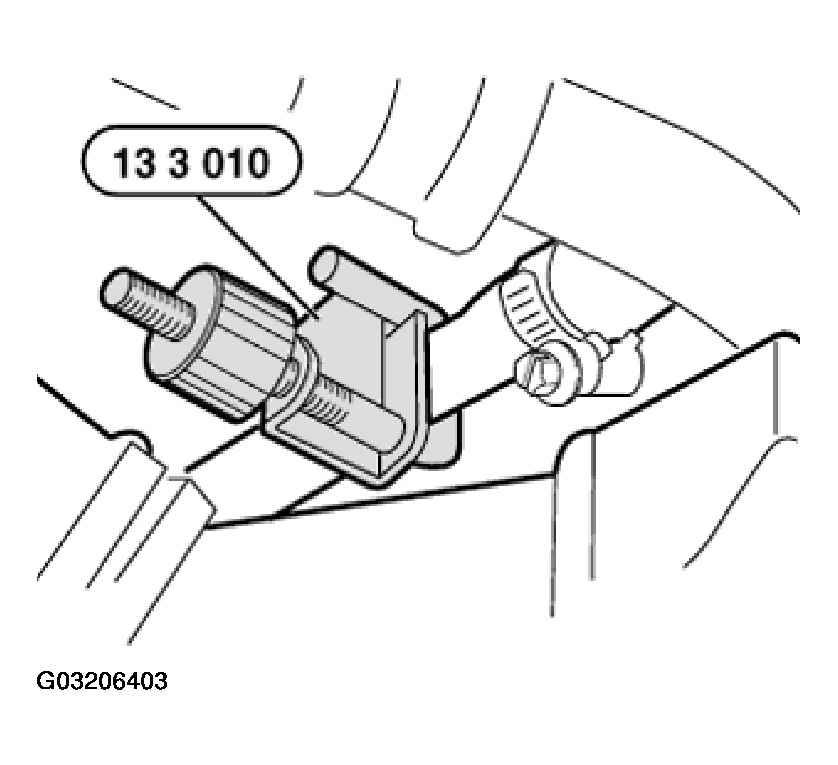

Fuel hoses with hose clamps: Seal hoses with special tool 13 3 010.

Fig 6: Sealing Off Fuel Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fuel hoses and hose clamps must be replaced each time they are removed!

Fuel hoses with quick-release couplings:

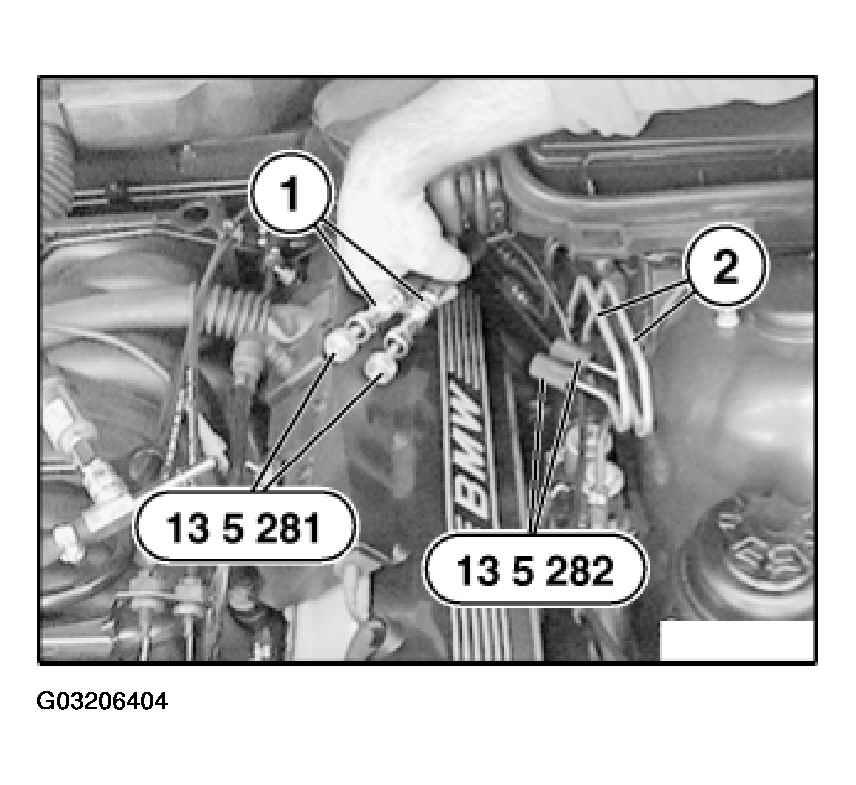

Seal fuel hoses (1) with special tool 13 5 281.

Fig 7: Sealing Fuel Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Seal fuel lines (2) with special tool 13 5 282.

Installation:

Check O-ring in fuel hose and sealing surfaces on fuel lines for damage; replace components if necessary. Coat O-ring for assembly with anti-friction agent.
