65 50 125 Removing and installing/replacing left or right rear monitor (newer version)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

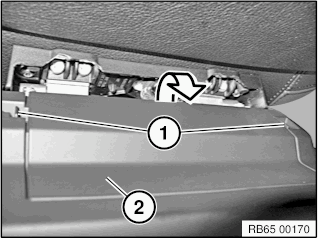

Unlock latch mechanisms (1).

Remove cover (2) in direction of arrow.

Installation note:

Once it has been removed, trim (2) must not be used again.

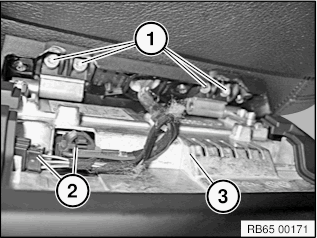

Fig 1: Removing Plug Connections And Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 2.1 Nm

Unlock plug connections (2) and disconnect.

Remove rear monitor (3) in direction of arrow.

Fig 2: Removing Plug Connections And Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
