65 24 020 Removing and installing/replacing left or right blocking circuit
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM PANEL FOR ROOF PILLAR AT REAR .

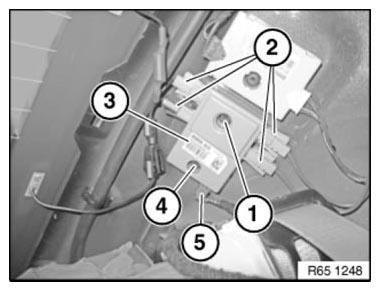

Release screw (1).
If necessary, release screw (4).
Unlock plug connections (2) and disconnect.
If necessary, disconnect plug connection (5).
Remove blocking circuit (3) from C-pillar.
Installation:
Position blocking circuit (3) so that positioning pin on back engages in associated hole.
