65 12 315 Removing and installing/replacing HU-H
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage!
There is a hard disk installed in the head unit.
Carry out mechanical work on the head unit and adjacent components with care.
Avoid subjecting the head unit to vibration/shocks.
IMPORTANT:
Read and comply with NOTES
on protection against electrostatic damage (ESD protection).
IMPORTANT:
Comply with instructions on HANDLING OPTICAL FIBRES
.
Necessary preliminary work:
- Remove RADIO AND IHKA CONTROLS .
- Disconnect NEGATIVE BATTERY CABLE .
NOTE:
Picture for example purposes only!

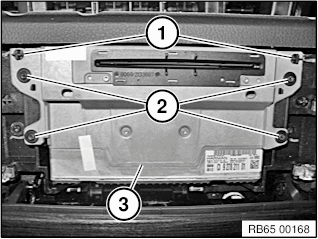

Unfasten screws (2).
Pull head unit (3) out of guide.
Installation note:
Make sure head unit (3) is correctly seated in guide lugs (1).

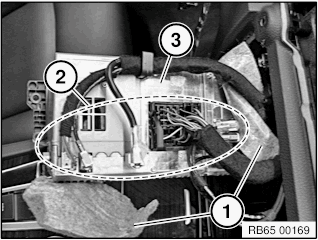

Set the protective nonwoven material (1) aside as shown.
Unlock plug connections.(2) and disconnect.
Remove head unit (3).
Only for US models with satellite radio:
When replacing the head unit, additional work is required!
- Refer to REMOVING AND INSTALLING/REPLACING SATELLITE TUNER (ONLY FOR US MODELS STARTING AT 09/2009) .
Replacement:
Carry out VEHICLE PROGRAMMING/ENCODING .
Additionally, load service history for the following vehicles: F01, F02, F03, F07, F10, F11 with production date from 07/2013
