65 12 071 Removing and installing/replacing amplifier: Replacement

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Remove amplifier (4) including holder (3).

Fig 1: Identifying Screw, Amplifier And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tabs (1) must be correctly slid into guide (2).

Check that amplifier (3) is securely seated.

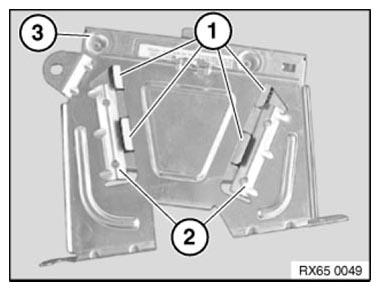

Fig 2: Identifying Tabs, Guide And Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.

For vehicle with production date up to 09/2010 , carry out conversion in the diagnosis system via path:

Vehicle
Conversions
Conversion Hi-Fi system

NOTE: On vehicle with production date after 09/2010 , no vehicle programming/encoding needs to be carried out!
