65 76 605 Removing and installing/replacing middle pedestrian protection sensor
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe SAFETY INSTRUCTIONS
for handling gas generators.
Incorrect handling can activate pedestrian protection and cause injury.
Necessary preliminary work:
- Disconnect BATTERY CABLE
- Remove BASEPLATE FOR NUMBER PLATE
- Remove ORNAMENTAL GRILLE IN BUMPER TRIM .

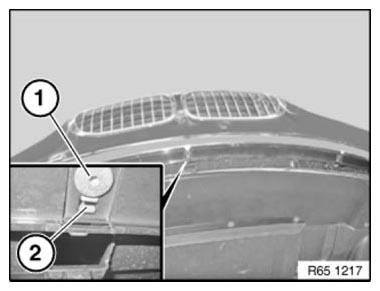

Release screws (1).
Tightening torque 65 76 1AZ .
Feed out sensor (2).

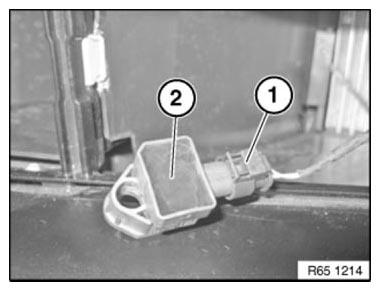

Unfasten plug connection (1) and disconnect.
Remove sensor (2).
