65 13 160 Removing and installing/replacing rear speaker carrier (in storage shelf)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out speaker cover (1) with special tool 00 9 325 .

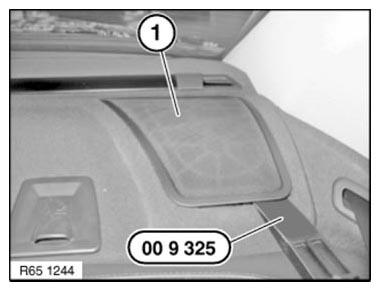

Fig 1: Removing Speaker Cover Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs on speaker cover (1) must not be damaged.

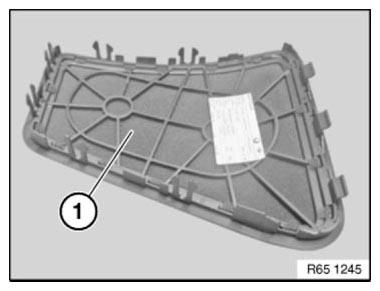

Fig 2: Identifying Retaining Lugs On Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Take out speaker box (2).

Disconnect plug connection underneath and remove speaker box (2).

Installation note:

Speaker box (2) must be exactly seated in groove of storage shelf.

Fig 3: Identifying Screws And Speaker Box

Courtesy of BMW OF NORTH AMERICA, INC.
