66 53... Instructions for adapting adjustment unit for reversing camera (CORGHI KDS quick-action clamp)
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
The following operations should only be carried out when using the tool kit for calibrating the reversing camera for the first time.
NOTE:
The operation is described for the left-hand side; proceed in the same way for the right-hand side.

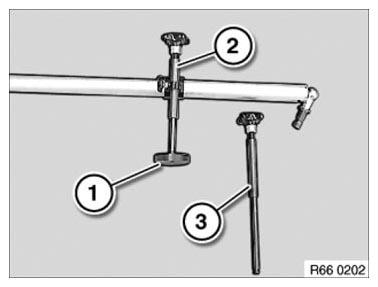

Remove support plate (1) from spindle (2).
Replace spindle (2) by spindle (3).
Press support plate (1) on to spindle (3).

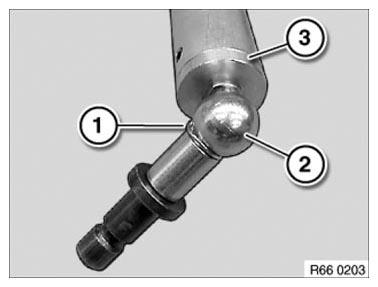

Release retaining clip (1).
Remove ball pin (2) from rod (3).

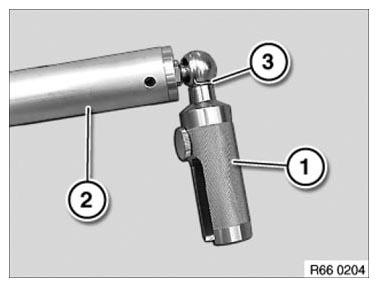

Fit new ball pin (1) on rod (2) and secure with retaining clip (3).
Fit ball pin (1) on CORGHI KDS quick-release clamp and secure.

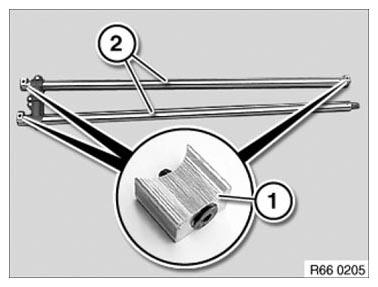

Remove all spacers (1) on cross bar (2).
NOTE:
Follow the same procedure for calibrating the reversing camera.
