51 11... Removing and installing/replacing holder for side view camera on left or right

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove SIDE VIEW VIDEO CAMERA
Pull side view video camera holder off bumper with a suitable tool (holder is secured with double-sided adhesive tape).

Installation note:

Holder (1) is encoded against incorrect installation.

Identification (2) indicates on which side of the vehicle holder (1) is stuck in.

For installation position observe shape of holder (1).

Fig 1: Identifying Installation Position Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Clean bonding surface on bumper trim (4) and remove adhesive residues.

To position holder (1) optimally, pre-install camera (3) on holder (1) before sticking in the holder.

Fig 2: Installing Camera On Holder

Courtesy of BMW OF NORTH AMERICA, INC.

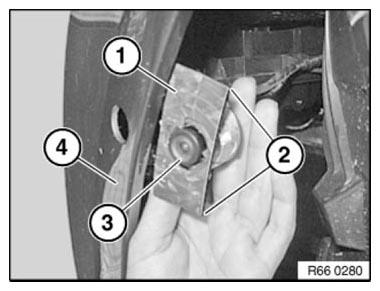

Outer edge (2) on holder (1) must be flush with outer bumper edge (4).
