66 51 030 Remove and install/replace KAFAS camera (up to production date 07/2012)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Expand two-part mirror base cover (1) by pressing from below and detach.

Feed out two-part mirror base cover (1) and remove.

NOTE: Catches of two-part mirror base cover (1) must not be damaged.

Fig 1: Expanding Two-Part Mirror Base Cover

Courtesy of BMW OF NORTH AMERICA, INC.

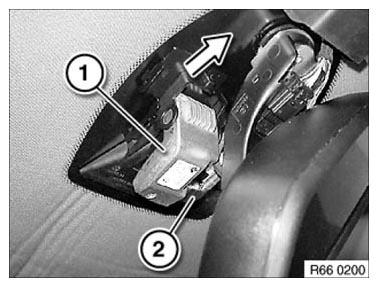

Slide camera (1) in direction of arrow out of mounting.

Disconnect plug connection (2).

Installation note:

Make sure camera (1) is firmly seated in mounting.

Fig 2: Sliding Camera Out Of Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

For replacement on vehicles up to 07/2012:

Carry out calibration via BMW diagnosis system:

Service functions:

Driver assistance systems
Lane departure warning
Calibrating the camera

NOTE: A new calibration is also required when the windscreen is replaced.

NOTE: Heating of camera for lane departure warning is integrated in windscreen. If heating is defective, the windscreen must be replaced.
