66 31 010 Notes on tool for ACC adjustment

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This service information is valid for the entire F-series with the new ACC sensor.

Dimensions:

Accessible area behind mirror: at least 80 m
Distance between mirror and vehicle: 80 cm +/- 5 cm
(Distance between mirror and ACC sensor 100 cm +/- 5 cm)
Total work bay size: 360 cm x 660 cm

Fig 1: Identifying Mirror, Wheel Laser And Slotted Diaphragm

Courtesy of BMW OF NORTH AMERICA, INC.

Maximum unevenness on floor:

Floor space for adjustment tool: no more than 1 mm
Floor space for vehicle: no more than 10 mm

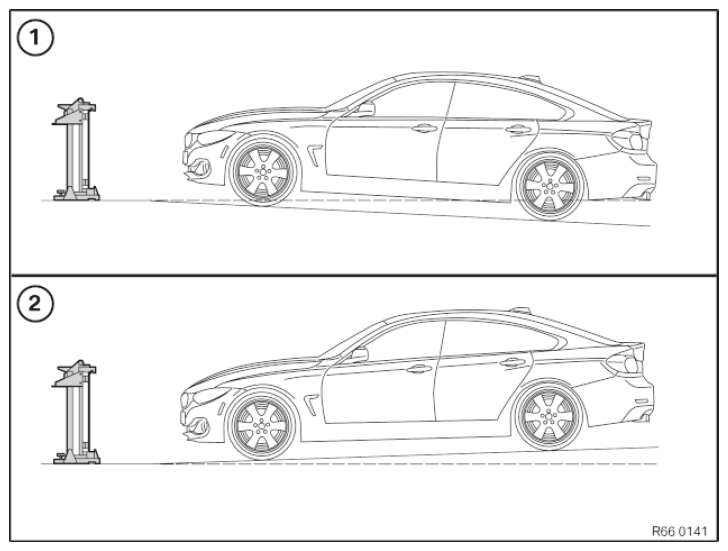

Fig 2: Identifying Maximum Irregularity Of Floor Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Maximum inclination on floor space for vehicle:

Downward incline of floor surface: no more than 3°
- See (1) in Fig 2
Upward incline of floor surface: no more than 1°
- See (2) in Fig 2

NOTE: Setting up the ACC adjusting device comprises the following steps:

Assembly of adjustment tool
Assembly of rail
Basic setting of adjustment tool on measuring bay

NOTE:

Detailed setup and operating instructions are enclosed with every ACC adjustment tool.
