Bleeding hydraulic circuit

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Thoroughly clean oil reservoir and its immediate surrounding area with lid closed.
  2. Top up hydraulic fluid or set fluid level correctly.
    NOTE:

    The fill level is dependent on the oil temperature. Check fill level at an oil temperature between 20 ° and 80 °C.

    With engine at normal operating temperature, do not exceed "MAX" marking of 80 °C (1).

    Do not drop below "Min. marking 20 °C" (2).

    Hydraulic fluid: see OPERATING FLUIDS .

  3. Start engine, run briefly and then switch off.
  4. Check and correct fill level with engine stopped.

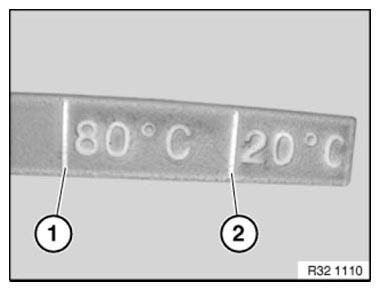

Fig 1: Identifying Maximum And Minimum Temperature Marking Of Fluid Level
G06889706Courtesy of BMW OF NORTH AMERICA, INC.
