37 14 515 Replacing rear left or right ride height sensor

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe SAFETY INFORMATION for raising the vehicle

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Unfasten plug connection (1) and disconnect.

Fig 1: Identifying Rear Left/Right Ride-Height Sensor Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (2) and disconnect jointed rod.

Tightening torque 37 14 4AZ .

Installation note:

Sensor lever (3) must point from ride height sensor to respective rear wheel.

Replace self-locking nut.

Release screws (1) and remove ride-height sensor (3).

Tightening torque 37 14 2AZ .

Fig 2: Identifying Ride-Height Sensor Plug Connections With Mounting Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

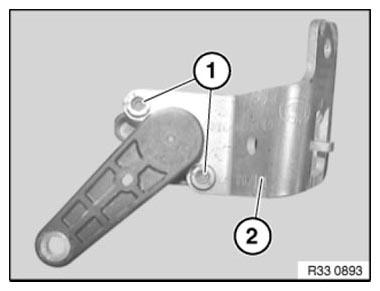

Release screws (1). Remove holder (2) from ride-height sensor.

Tightening torque 37 14 3AZ .

Fig 3: Identifying Ride-Height Sensor With Mounting Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out RIDE HEIGHT ADJUSTMENT
Check HEADLIGHT SETTING , correct if necessary
