37 13... Overview of lines, steering with ARS

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

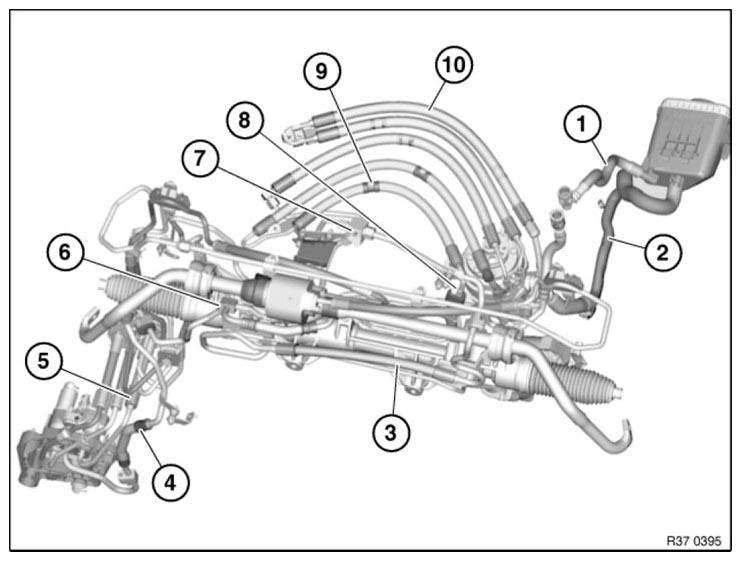

Fig 1: Overview Of Lines, Steering With ARS

Courtesy of BMW OF NORTH AMERICA, INC.

No.	Designation
1	Return line
2	Suction line
3	ARS expansion hose part 3
4	ARS return line
5	ARS expansion hose part 2
6	ARS+AFS return
7	ARS expansion hose part 4
8	Expansion hose part 2
9	Expansion hose part 1
10	ARS expansion hose part 1
