Fitting new screw connection

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

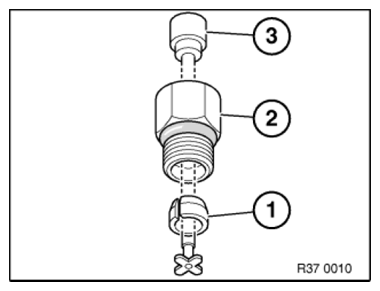

Insert complete new screw connection consisting of toothed ring (1), banjo bolt (2) and assembly plug (3) into air spring/pipe connection of air supply unit.

Tightening torque 37 12 3AZ .

Remove assembly plug (3).

Fig 1: Identifying Toothed Ring, Banjo Bolt And Assembly Plug

Courtesy of BMW OF NORTH AMERICA, INC.

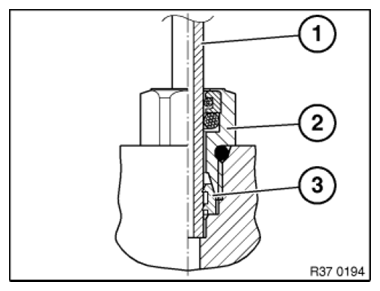

Slide new pipe (1) into banjo bolt (2) up to marking.

Check installation position of pipe (1) by pulling back slightly.

NOTE: The toothed ring (3) has engaged correctly when the pipe (1) cannot be pulled back.

Fig 2: Identifying Pipe, Toothed Ring And Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
