26 11 090 Removing and installing/replacing rear centering mount for propeller shaft

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove PROPELLER SHAFT .

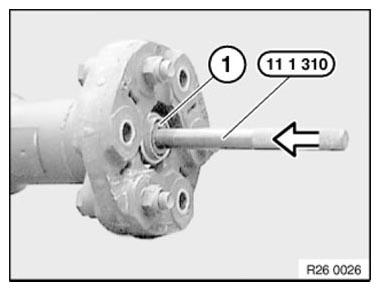

Completely fill centering bore hole (1) with viscous grease.

Drive special tool 11 1 310 with a plastic hammer into centering bore hole.

The centering bearing (1) is forced out of the propeller shaft by the pressure on the grease filling.

If necessary, top up grease repeatedly.

NOTE: To drive out the bearing, you can also fill the centering bore hole with water instead of grease.

Fig 1: Driving Special Tool (111310) With A Plastic Hammer Into Centering Hole

G06894883

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Grease or water must be removed from the bearing bore.

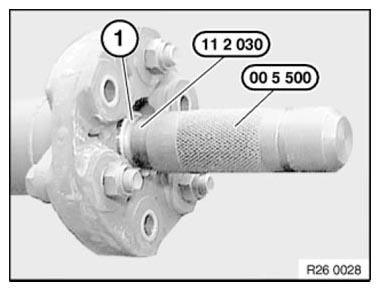

Drive in centering mount (1) with special tools 11 2 030 and 00 5 500 into propeller shaft (observe protrusion).

IMPORTANT: Plastic centering mount must not be greased.

Fig 2: Installing Centering Mount Using Special Tool 11 2 030 And 5 500

G06894884

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

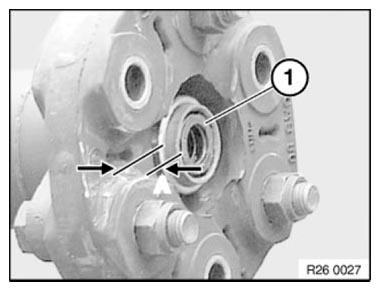

Observe protrusion A = 4⁺² mm of centering (1).

Fig 3: Observing Protrusion Of Centering

G06894885

Courtesy of BMW OF NORTH AMERICA, INC.
