26 11 020 Replacing center mount gaiter

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove PROPELLER SHAFT .

NOTE:

The propeller shaft is balanced.

The front and rear propeller shafts must be reassembled in the same position.

Detach gaiter (1) from groove (2).

Mark front propeller shaft (3) and rear propeller shaft (4) in one plane.

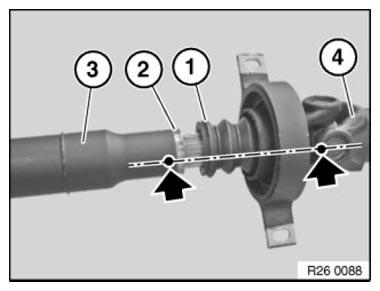

Fig 1: Marking Front Propeller Shaft And Rear Propeller Shaft In One Plane

G06894886

Courtesy of BMW OF NORTH AMERICA, INC.

Pull apart propeller shaft.

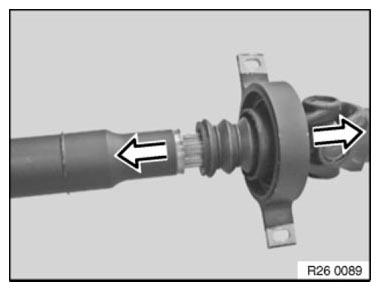

Fig 2: Pulling Propeller Shaft Apart

G06894887

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, insert new clamping ring (1) into front propeller shaft (2).

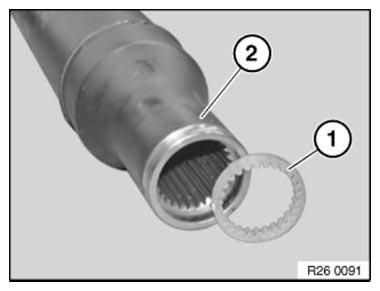

Fig 3: Identifying Front Propeller Shaft With Clamping Ring

G06894888

Courtesy of BMW OF NORTH AMERICA, INC.

Release gaiter (1) with screwdriver from groove (2) and pull off over longitudinal splines.

Installation note:

Apply an even coating of grease to longitudinal splines on shaft.

See SPECIFIED GREASE .

Observe markings and force front propeller shaft onto longitudinal splines (markings must be flush).

Push gaiter (1) during installation into groove (2) and make sure it is firmly fitted.

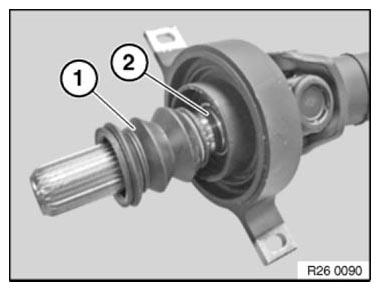

Fig 4: Identifying Gaiter And Groove

G06894889

Courtesy of BMW OF NORTH AMERICA, INC.
