2612001 Replacing complete propeller shaft center bearing

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove PROPELLER SHAFT .

NOTE:

The propeller shaft is balanced.

The front and rear propeller shafts must be reassembled in the same position.

Detach gaiter (1) from groove (2).

Mark front propeller shaft (3) and rear propeller shaft (4) in one plane.

Installation note:

Make sure gaiter (1) is securely fitted in groove (2).

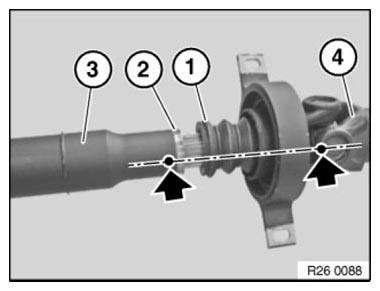

Fig 1: Marking Front Propeller Shaft And Rear Propeller Shaft In One Plane

Courtesy of BMW OF NORTH AMERICA, INC.

Pull apart propeller shaft.

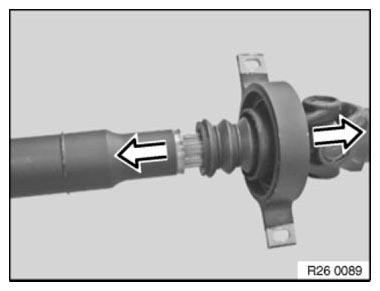

Fig 2: Pulling Propeller Shaft Apart

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, insert new clamping ring (1) into front propeller shaft (2).

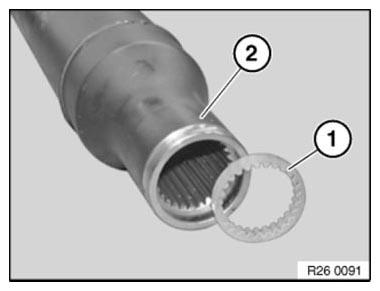

Fig 3: Identifying Front Propeller Shaft With Clamping Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Release gaiter (1) with screwdriver from groove (2) and pull off over longitudinal splines.

Installation note:

Apply a coating of grease to longitudinal splines on shaft.

See SPECIFIED GREASE .

Push gaiter (1) during installation into groove (2) and make sure it is firmly fitted.

Observe markings and force front propeller shaft onto longitudinal splines (markings must be flush).

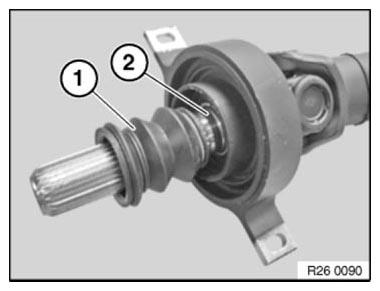

Fig 4: Identifying Gaiter And Groove

Courtesy of BMW OF NORTH AMERICA, INC.

Install special tool 00 7 500 between center mount (1) and universal joint (2).

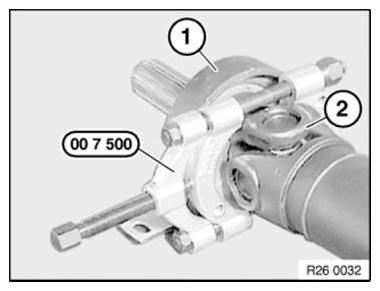

Fig 5: Installing Special Tool (00 7 500) Between Center Mount And Universal Joint

Courtesy of BMW OF NORTH AMERICA, INC.

Using a hydraulic press, force center mount (1) off propeller shaft (2).

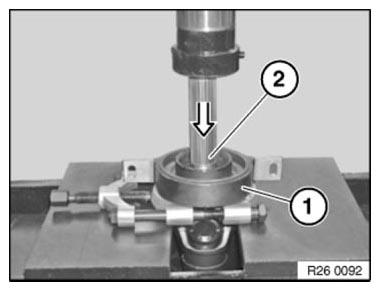

Fig 6: Forcing Center Mount Off Propeller Shaft Using Hydraulic Press

Courtesy of BMW OF NORTH AMERICA, INC.

Force new center mount (1) onto propeller shaft. Collar (2) must point in direction of travel towards front propeller shaft. Drive center mount to limit position with special tool 33 1 020 .

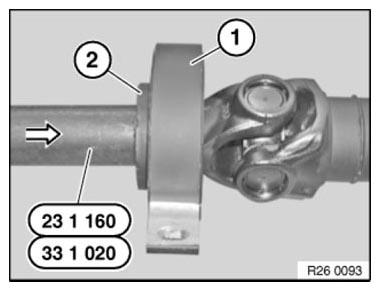

Fig 7: Forcing Center Mount Onto Propeller Shaft Collar Using Special Tool (33 1 020)
