52 24 034 Replacing armrest upper part for rear seat backrest

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Open center armrest.

Detach cover from adhesive band.

Release screws (1).

Tightening torque: 52 24 3AZ

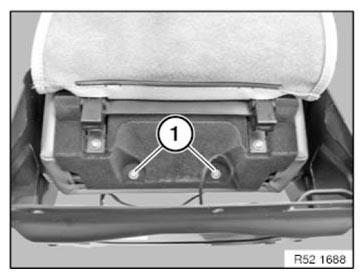

Fig 1: Identifying Center Armrest Screws

G08473065

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining lugs on upper part (1) on left and right with special tool 00 9 317 .

NOTE: Cover rear seat padding to avoid direct contact with special tool 00 9 317 .

Press rear seat padding to one side for better access.

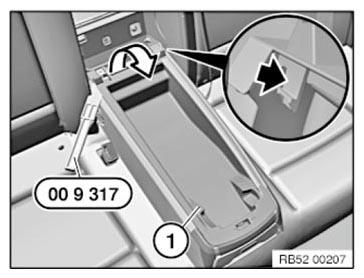

Fig 2: Releasing Left And Right Upper Part Retaining Lugs Using Special Tool (00 9 317)

G08473066

Courtesy of BMW OF NORTH AMERICA, INC.

At same time unclip upper part (1) upwards in direction of arrow.

Carefully clip out upper part (1) in stages from rear to front.

Installation note:

Retaining lugs of upper part (1) must not be damaged.

If necessary, replace upper part (1).

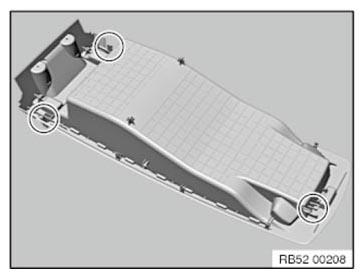

Fig 3: Identifying Upper Part Of Retaining Lug Clips

G08473067

Courtesy of BMW OF NORTH AMERICA, INC.

Remove upper part and unlock and disconnect plug connection (1) on underside.

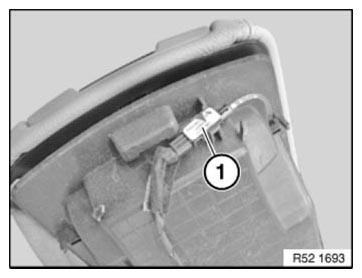

Fig 4: Identifying Plug Connection On Underside
