52 25 070 Removing and installing/replacing wooden trim on rear center armrest

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove LEATHER COVER on rear center armrest

Release screws (1).

Remove wooden trim.

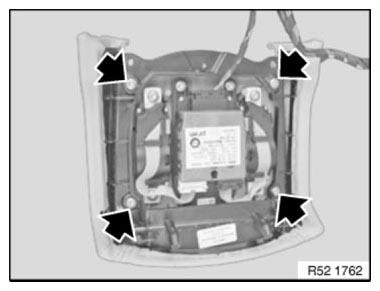

Fig 1: Locating Wooden Trim Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove rear CONTROLLER .
