52 16 095 Removing and refitting/replacing bracket for thigh support on left or right front seat

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This removing/installing/replacing procedure applies to "Sport" seat version.

Necessary preliminary work:

Move thigh support forwards as far as possible

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Installation note:

Insert screws (2) with Loctite.

Tightening torque 52 10 11AZ .

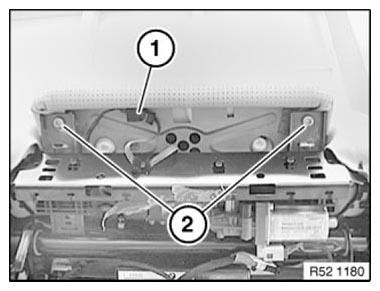

Fig 1: Identifying Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach seat cover (1) in marked area from carrier (2) for thigh support.

Feed plug out of carrier (2) for thigh support.

Remove carrier (2) for thigh support.

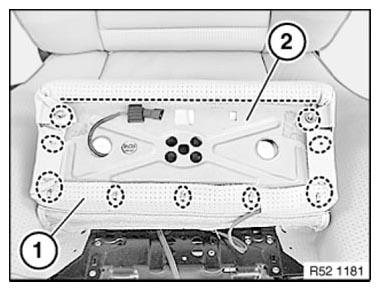

Fig 2: Identifying Seat Cover And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
