52 14 390 Removing and installing/replacing front left or right crash-active head restraint (production date 07/2012 through model year 2015)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Lever out locking clamps (1)

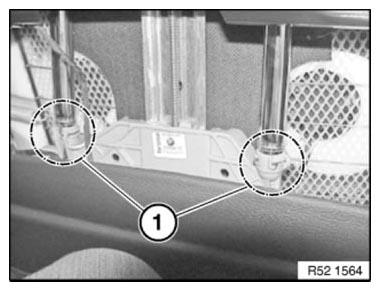

Fig 1: Identifying Locking Clamps
G06895228Courtesy of BMW OF NORTH AMERICA, INC.

Lift out head restraint.

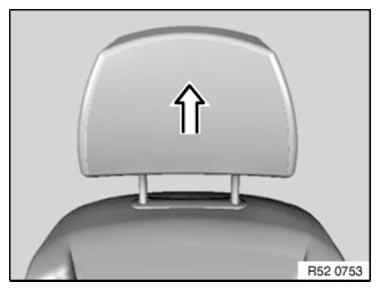

Fig 2: Lifting Out Head Restraint
G06895229Courtesy of BMW OF NORTH AMERICA, INC.
