52 14 041 Removing and installing inner cover on left or right front seat (model year 2009 through production date 07/2012)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

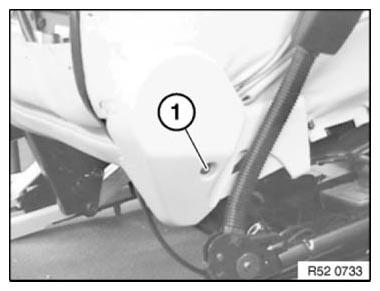

Release screw (1).

Fig 1: Identifying Front Seat Inner Cover Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

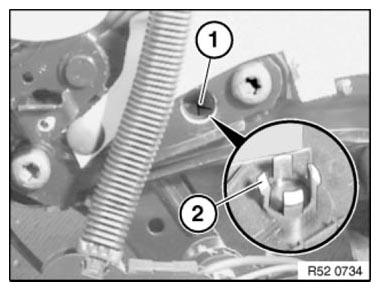

Cover is secured by guide (2) in bore hole (1).

Fig 2: Identifying Guide And Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.
