52 14 040 Removing and installing/replacing outer cover on left or right front seat (model year 2009 through production date 07/2012)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, move seat fully forwards and upwards.

Remove trim:

Unclip at rear towards top side
Pull on belt opening to one side
Bend trim open slightly at top and bottom on actuating unit
Bend open slightly at top and bottom and pull outwards a little

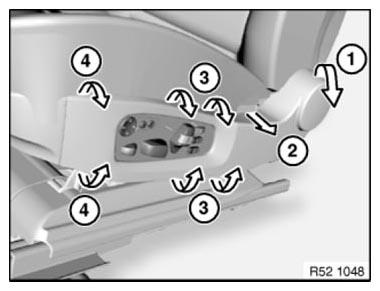

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining clips must not be damaged.

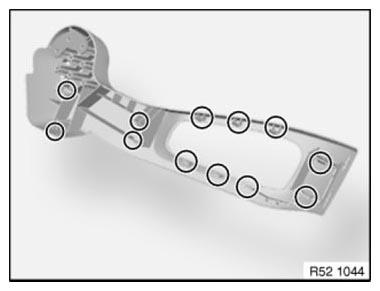

Fig 2: Identifying Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
