52 14 017 Removing and installing/replacing seat frame for driver's seat (model year 2009 through production date 07/2012)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove DRIVER'S SEAT .
Remove SEAT FABRIC .
Remove BACKREST FRAME .

Release all clips.

Installation:

If necessary, replace faulty clips.

Feed wiring harness (1) out of seat frame.

Fig 1: Identifying Seat Frame Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

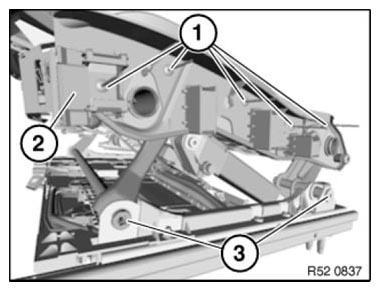

Open rivets (1) on left and right.

Remove securing strips (2) on left and right.

Release screws (3).

Tightening torque 52 10 6AZ .

Remove seat frame from seat rail.

Fig 2: Identifying Seat Frame Rivets, Strips And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The new seat frame part contains all the drives.
