Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 740i, 2015 BMW 740Li, and 2014 BMW Alpina B7L. However, it is still accessible from the selected car via links, so may be relevant.

F03: Remove underbody panelling

IMPORTANT: Secure fuel tank against slipping and falling out.

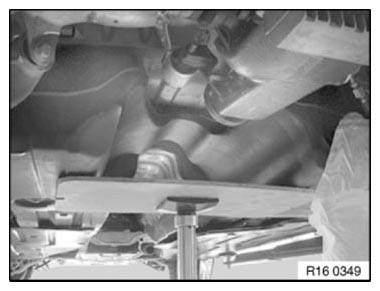

Fig 1: Identifying Fuel Tank With Support

Courtesy of BMW OF NORTH AMERICA, INC.

Generously support the fuel tank.

Release screws (1).

Installation:

Tightening torque 16 11 2AZ .

Remove tightening strap (2).

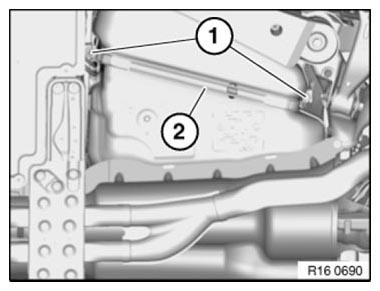

Fig 2: Identifying Tightening Strap With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
