Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 740i, 2015 BMW 740Li, and 2014 BMW Alpina B7L. However, it is still accessible from the selected car via links, so may be relevant.

Draw off FUEL from fuel tank
Remove rear right WHEEL ARCH TRIM

Release plastic nuts (1).

Installation:

Check plastic nuts (1), replace if necessary.

Tightening torque 16 12 2AZ .

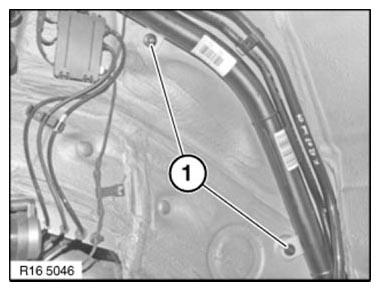

Fig 1: Identifying Plastic Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: There may be residual amounts of fuel in the tank.
Catch escaping fuel in a suitable container.

Unfasten hose clip (2).

Installation:

Check hose clamp (2), replace if necessary.

Tightening torque 16 12 1AZ .

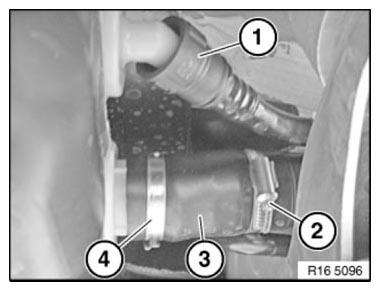

Fig 2: Identifying Filler Hose, Hose Clamp And Quick-Release Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

Release quick-release coupling (1).

Detach fuel filler pipe from filler hose (3).

Release hose clamp (4) and remove filler hose (3).

Installation:

Check hose clamp (4), replace if necessary.

Tightening torque 16 12 1AZ .

Installation:

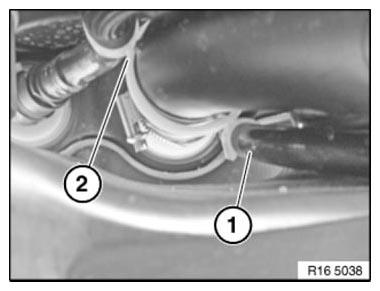

Make sure lines (1) and (2) are correctly seated in holder.

Fig 3: Identifying Fuel Lines

Courtesy of BMW OF NORTH AMERICA, INC.
